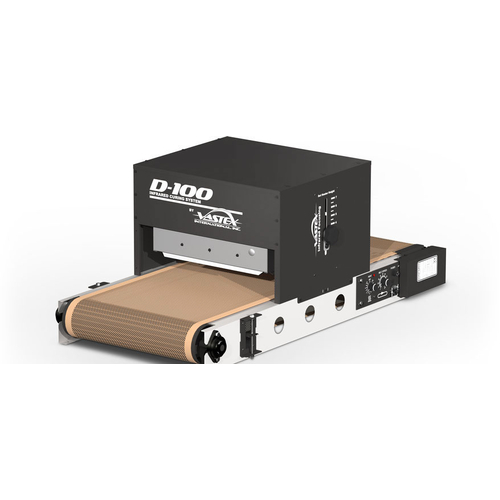

Vastex D-1000 Infrared Conveyer Dryer | 26"/ 66cm Wide | 2050W 10A Power
Compact Entry Level Infrared Conveyor Dryer.
VastexSKU: VASTEX-D-1000
Sold Out - Backorder Available

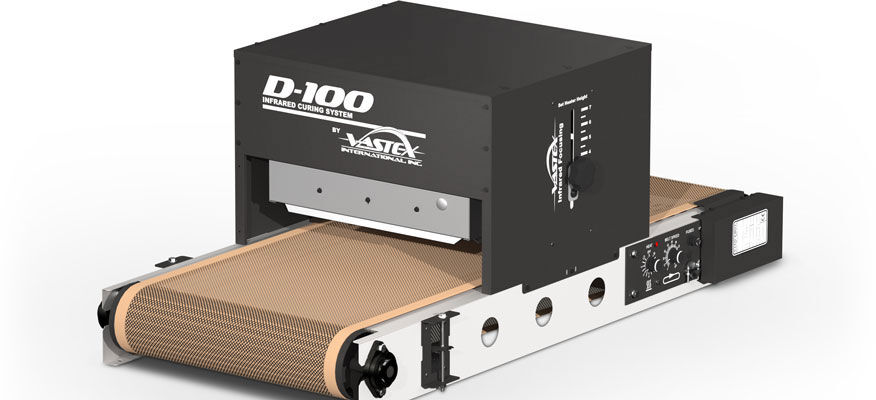

Entry level tabletop dryer with 26" (66cm) wide conveyor belt cures up to 110 plastisol-printed garments/h, 50 water based -printed garments/h, and DTF adhesives at high rates.

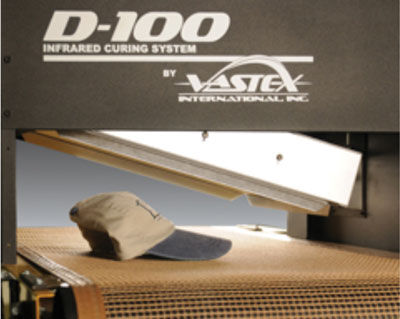

The heater can be raised, lowered and pivoted using lock knobs on the sides of the heating chamber according to the thickness of printed garments and/or the angle of printed images on irregularly shaped items, for uniform curing of the printed area using minimum energy. Heater shields are included as standard to maximize edge-to-edge temperature consistency for increased image quality.
At 56 in. (142.2 cm) long and 32 in. (81.3 cm) wide overall, the unit fits on tabletops or on utility carts with tops as small as 30 in. (76.2 cm) square, and is available with an optional mobile stand - see below.
It is also suitable for mobile screen printers to power on site using a small generator at fairs, concerts, trade shows and other events where larger garments as well as tees may be screen printed.

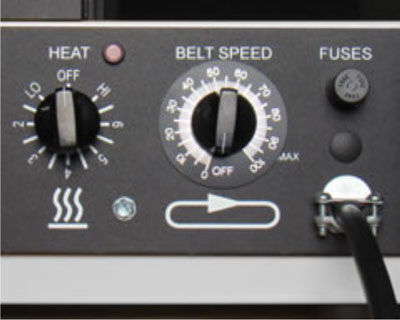

Variable controls for both heat intensity and conveyor speed allow fine-tuning of the drying process according to ink type, ink coverage, desired cure temperature, and rate at which items are being screen printed, or coated with DTF adhesives.

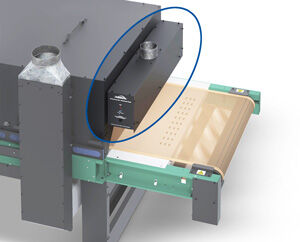

Optional Exhaust Hood (EXH-D1H)Exhaust booster system removes moisture and reduces fumes at exit of the dryer, moving up to 141 cubic feet of air per minute - critical for rapid drying of water-based inks and discharge. Strongly recommended for DTF adhesives.
|
 |

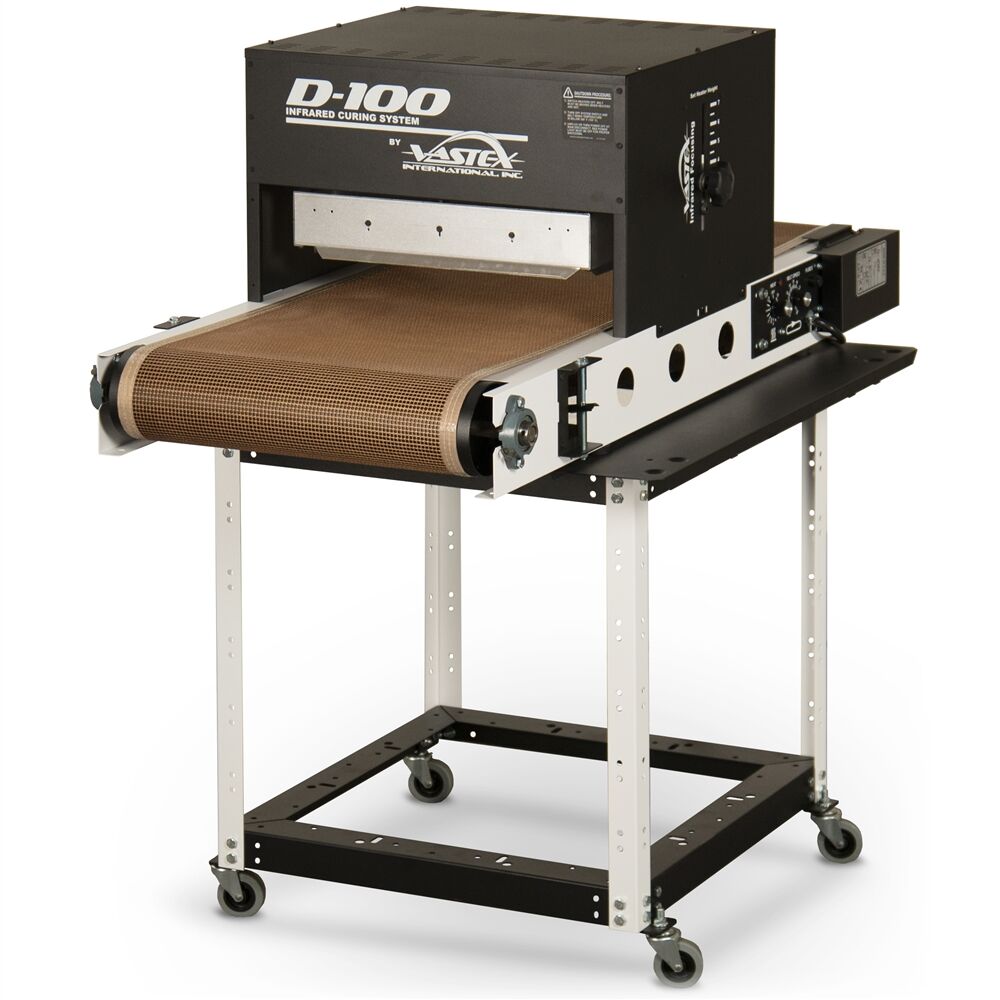

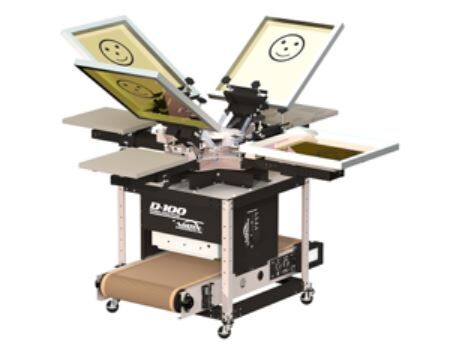

Optional Stand (S1-27-DEMT)The S1-27-DEMT is slightly lareger than the standard S1-27, designed to hold the conveyor above, making it mobile and easlily rolled next to your printing equipment. The sturdy powder coated frame holds up to 113kg total, is on wheels and provides a compact all in one setup when the Conveyor is placed below and a Vasted V-100 Carousel on top. Dimensions (HWD): 70 x 82 x 78cm |
 |
Assembly
For more compact shipping, the D-100 and D-1000 are partially assembled. Optional factory assembly at additional charge.
Assembly & Opewrating instructions can be downloaded here now.
Shipping Not Included
We aim to keep costs low and on par with buying direct from the USA. This product is supplied at a discounted cost. When added to your cart, no free delivery options will be available.
Only one shipping cost will appear for this product. It is important to know in advance shipping costs are NOT included and will be in addtion to the listed purchase cost. Shipping is EXW Sydney warehouse and will be calculated Manually after order placement. After costs advised you have full option to accept or reject and cancel the order.
We recommend you create a Quote First.
Creating a Quote with this item first, separate to all other products, shipping can then be calculated separatrely.
SMART
Teflon coated fiberglass belt with tracking system.
BELT WIDTH
18" (46 cm)
HEATER WIDTH
16" (41 cm)
ADJUSTABLE
Speed, temperature, heater height and tilt.
FAST
110+* shirts per hour with plastisol and 50+* with water based.
PRECISE
Powerful infrared heater with tight coil pattern and heat shields.
VALUABLE
High quality, exceptional service.
COMPACT
Total footprint is less than 8 sq.ft (2.44 sq.m).
Shipping Not Included
We aim to keep costs low and on par with buying direct from the USA. This product is supplied at a discounted cost. When added to your cart, no free delivery options will be available.
Only one shipping cost will appear for this product. It is important to know in advance shipping costs are NOT included and will be in addtion to the listed purchase cost. Shipping is EXW Sydney warehouse and will be calculated Manually after order placement. After costs advised you have full option to accept or reject and cancel the order.
We recommend you create a Quote First.
Creating a Quote with this item first, separate to all other products, shipping can then be calculated separatrely.
Heater Warranty: 5 Year
Defect Warranty: 2 Year
Shirts / Hr: Plastisol* 110+ @ 25 secs
Shirts/hr: Water based* 50+@ 70 secs
Shirts/hr: Discharge* 50+@ 70 secs
Shirts/hr DTG/digital* N/A
Time in Tunnel Range (mm:ss) 00:17 - 01:20
Belt Speed 0.6 - 7.4 FPM (0.18 - 2.3 MPM)
Exhaust (Free Air) 177 CFM (optional)
Exhaust Diameter 4” (10.16 cm)
Overall Length 56" (143 cm)
Overall Width 32" (81 cm)
Overall Height D-1000 - 19" (48.3 cm)
Belt Width 26" (66 cm)
Chamber Length 18" (45.7 cm)
Chamber Infeed Width 27.75" (70.5 cm)
Chamber Infeed Height (adjustable) 2" - 7" (5 - 17.7 cm)
Heat Range (@ Heater) 0-750 F° (0-399 C°)
Heater Size 16" x 20" (40.6 x 50.8 cm)
Total Wattage 2,050 Watts (2.05kW)
Electrical Specs: 240V, 1 Phase 3 wire 50/60 HZ, FLA = 8.5A
Unit Weight: 114 lbs (52 kg)
* Production speeds are estimates are based on 16” centers and will vary depending on ink manufacturer, humidity of shop, and other variables.
Assembly
For more compact shipping, the D-100 and D-1000 are partially assembled. Optional factory assembly at additional charge.
- View the D-100 Operatin & Assembly Manual here now
Shipping
Dimensions: Box #1 - 69x54x18cm, Box #2 - 79x54x23cm, Box #3 - 92x79x21cm, Box #4 - 92x79x21cm, Box #5 - 79x38x21cm | On Skid - 125 x 94 x 92cm
Weight: Box 1 - 7.7kg, Box 2 - 10.9kg, Box 3 - 15.9kg, Box 4 - 19.5kg, Box 5 - 5kg | Boxes on skid - 106 Kg
Only one shipping cost will appear for this product. It is important to know in advance shipping costs are NOT included and will be in addtion to the listed purchase cost. Shipping is EXW Sydney warehouse and will be calculated Manually after order placement. After costs advised you have full option to accept or reject and cancel the order.
| SKU | VASTEX-D-1000 |
| Brand | Vastex |
| Shipping Weight | 106.0000kg |
| Shipping Width | 1.250m |
| Shipping Height | 0.920m |
| Shipping Length | 0.940m |
| Shipping Cubic | 1.081000000m3 |
Vastex warranty coverage applies to manufacturing defects only, not to normal wear or abuse. Read the full Vastrex Warranty Statement here.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law (ACL). You are entitled to a replacement or refund for a major failure and for compensation for any other reasonable foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Where products have been used, suitability of usage may be determined and no refund is available for change of mind purchases on used products. This does not exclude warranty claims where product may contain a manufacturing fault.
