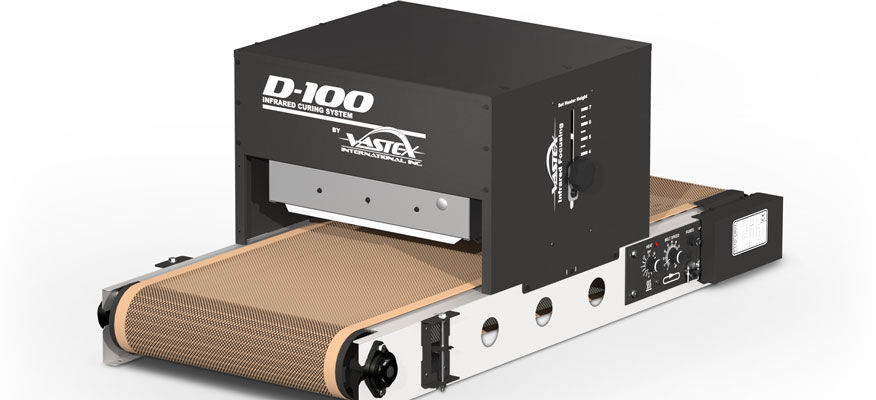

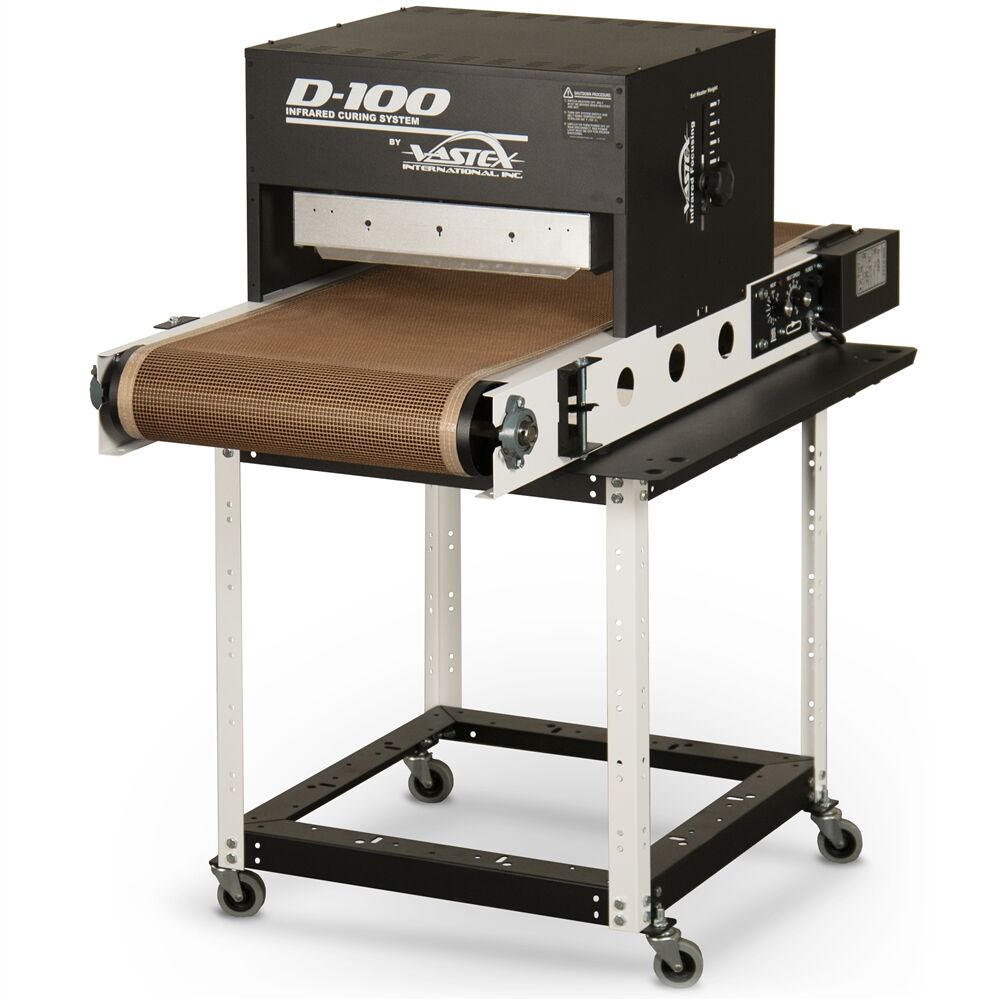

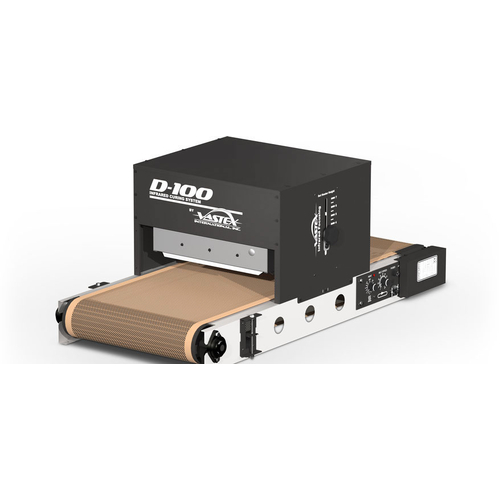

SMART
Teflon coated fiberglass belt with tracking system.

BELT WIDTH
18" (46 cm)

HEATER WIDTH
16" (41 cm)

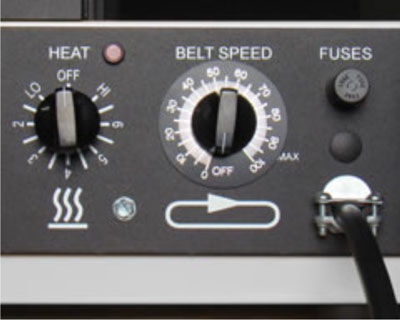

ADJUSTABLE
Speed, temperature, heater height and tilt.

FAST
110+* shirts per hour with plastisol and 50+* with water based.

PRECISE
Powerful infrared heater with tight coil pattern and heat shields.

VALUABLE
High quality, exceptional service.

COMPACT
Total footprint is less than 8 sq.ft (2.44 sq.m).

Shipping Not Included

We aim to keep costs low and on par with buying direct from the USA. This product is supplied at a discounted cost. When added to your cart, no free delivery options will be available.

Only one shipping cost will appear for this product. It is important to know in advance shipping costs are NOT included and will be in addtion to the listed purchase cost. Shipping is EXW Sydney warehouse and will be calculated Manually after order placement. After costs advised you have full option to accept or reject and cancel the order.

We recommend you create a Quote First.

Creating a Quote with this item first, separate to all other products, shipping can then be calculated separatrely.

Heater Warranty: 5 Year
Defect Warranty:  2 Year
Shirts / Hr: Plastisol* 110+ @ 25 secs
Shirts/hr: Water based* 50+@ 70 secs
Shirts/hr: Discharge* 50+@ 70 secs
Shirts/hr DTG/digital* N/A
Time in Tunnel Range (mm:ss) 00:17 - 01:20
Belt Speed 0.6 - 7.4 FPM (0.18 - 2.3 MPM)
Exhaust (Free Air) 177 CFM (optional)
Exhaust Diameter 4” (10.16 cm)
Overall Length 46" (117 cm)
Overall Width 24" (61 cm)
Overall Height D-100 - 19" (48.3 cm)
Belt Width 18" (45.7 cm)
Chamber Length 18" (45.7 cm)
Chamber Infeed Width 19.5" (49.5 cm)

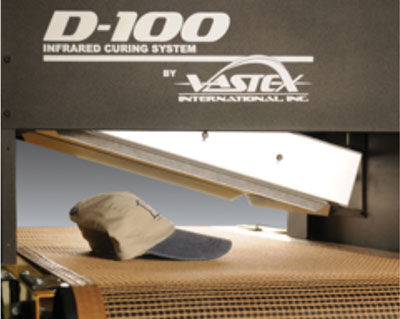

Chamber Infeed Height (adjustable) 2" - 7" (5 - 17.7 cm)
Heat Range (@ Heater) 0-750 F° (0-399 C°)
Heater Size 16" x 16" (40.6 x 40.6 cm)
Total Wattage 1,625 Watts (1.625kW)
Electrical Specs: 240V, 1 Phase 3 wire 50/60 HZ, FLA = 6.5A
Unit Weight: 89 lbs (41 kg)
* Production speeds are estimates are based on 16” centers and will vary depending on ink manufacturer, humidity of shop, and other variables.

Assembly

For more compact shipping, the D-100 and D-1000 are partially assembled. Optional factory assembly at additional charge.
- View the D-100 Operatin & Assembly Manual here now

Shipping

Dimensions: Box #1 - 54x29x8” (138 x 74 x 21 cm), Box #2 - 21x21x7” (53 x 53 x 18 cm), Box #3 - 25x18x6” (64 x 46 x 15 cm) | On Skid - 60” x 32” x 22” (153 x 82 x 56 cm)
Weight: Box 1 - 57 lbs (26 kg), Box 2 - 16 lbs (7.3 kg), Box 3 - 21 lbs (9.6 kg) | Boxes on skid - 115 lbs (52 kg)

Only one shipping cost will appear for this product. It is important to know in advance shipping costs are NOT included and will be in addtion to the listed purchase cost. Shipping is EXW Sydney warehouse and will be calculated Manually after order placement. After costs advised you have full option to accept or reject and cancel the order.

Vastex warranty coverage applies to manufacturing defects only, not to normal wear or abuse. Read the full Vastrex Warranty Statement here.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law (ACL). You are entitled to a replacement or refund for a major failure and for compensation for any other reasonable foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Where products have been used, suitability of usage may be determined and no refund is available for change of mind purchases on used products. This does not exclude warranty claims where product may contain a manufacturing fault.
