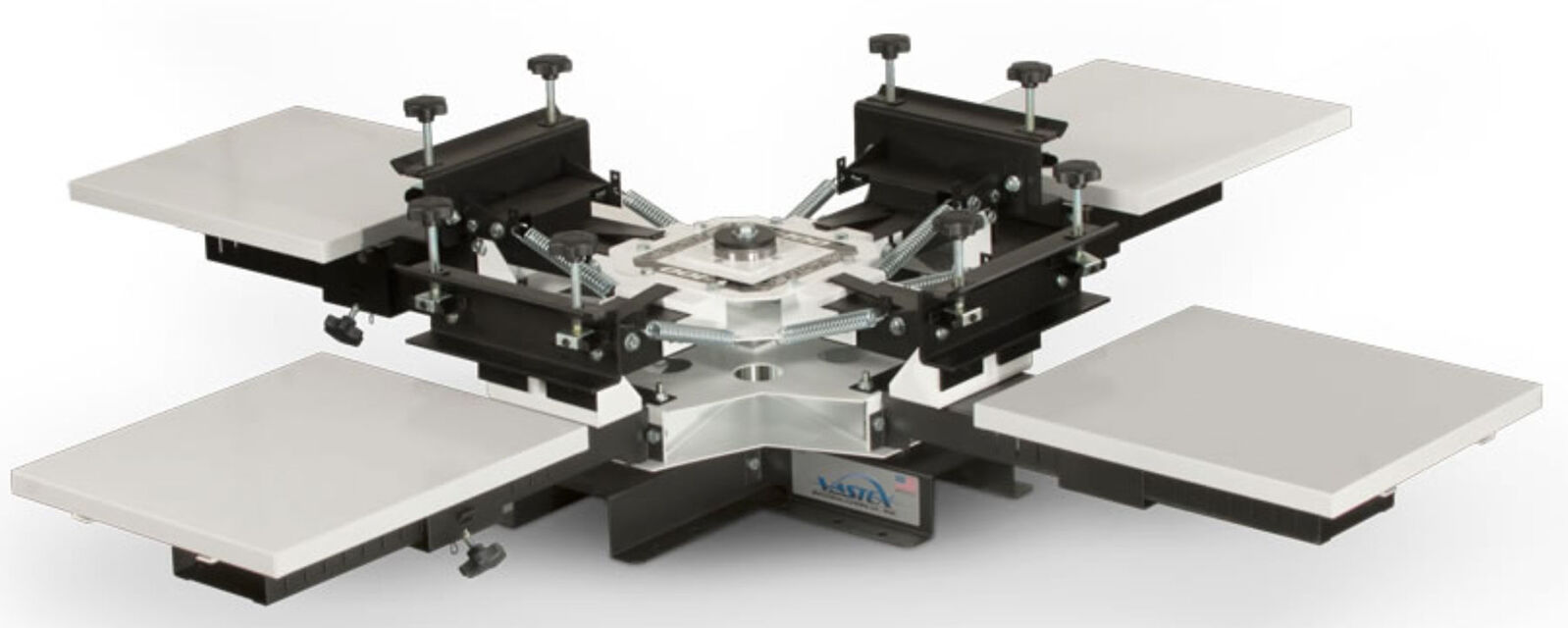

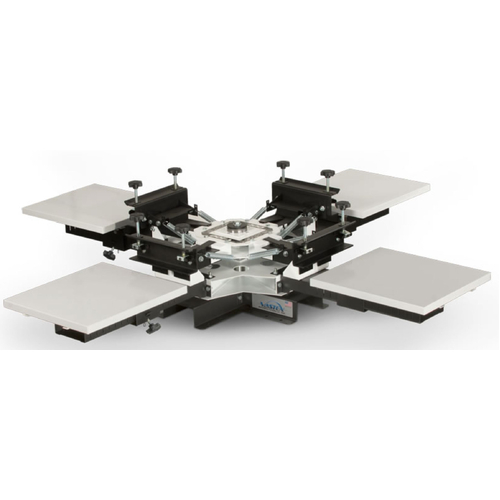

4 Station/4 Colour Tabletop Press | Vastex V100-44 model
V100 Series Light-Duty Tabletop Garment Printer
VastexSKU: VASTEX-V100-44
V-100 tabletop screen printing presses are engineered specifically for 1- to 4-colour garment printing, overflow printing, and printing in restricted spaces such as spare rooms and mobile shops — at low costs generally associated with machines of lesser accuracy and durability.
Compared with commercial and industrial presses from Vastex, V-100 presses are characterized by lighter-duty construction, tabletop-only configuration, omission of quick registration micros, increased use of fasteners versus welds, and shipping of units disassembled in multiple cartons.
Quality results are achieved by retaining critical components from Vastex's commercial and industrial models: no-warp steel pallets, screen off-contact and level adjustments, rotor detent for positive engagement of pallets, and three-point bearing locks providing pinpoint registration of print-heads-to-pallets and allowing all-heads-down printing.
Add on as your business grows

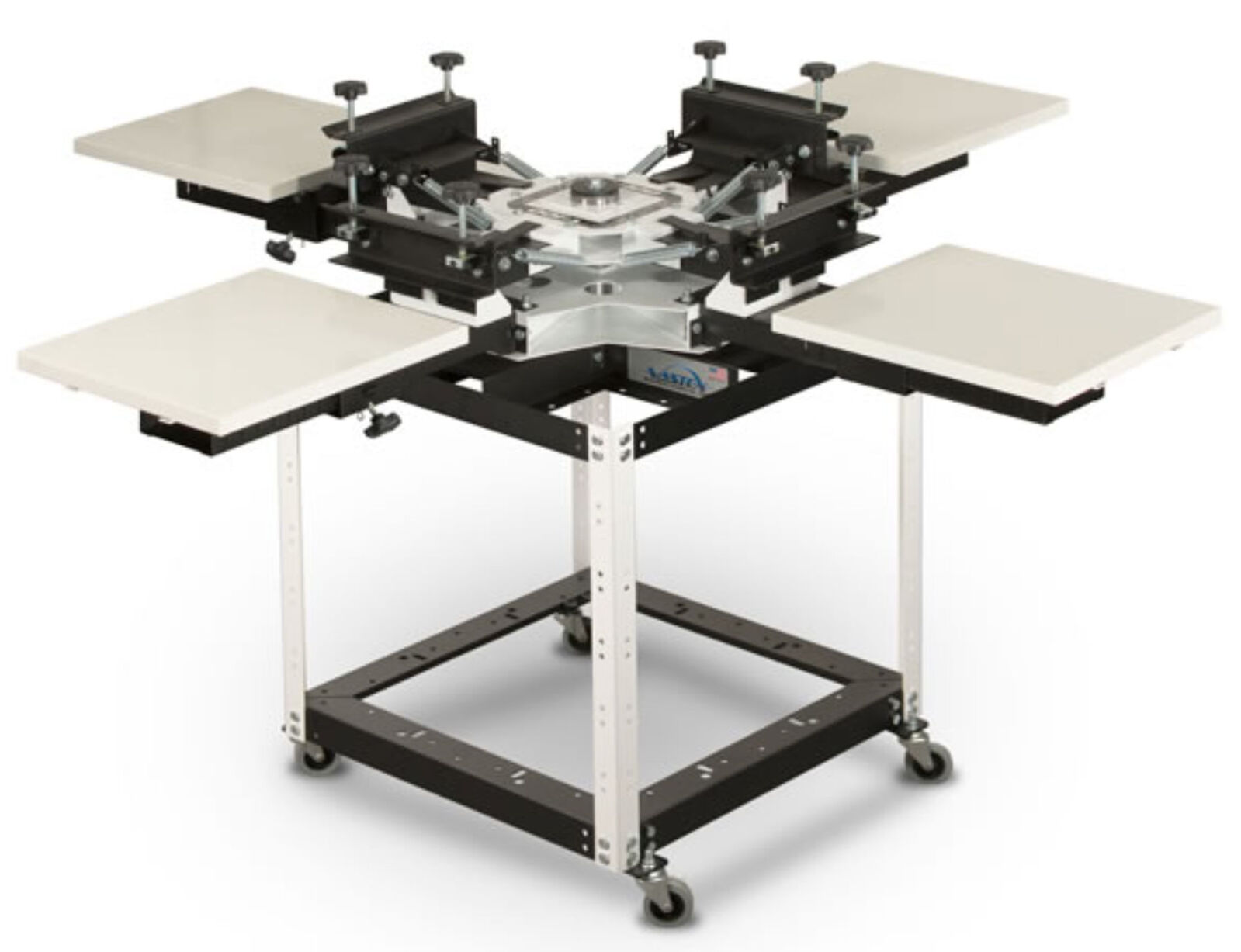

Add the optional Print Stand to make the carousel mobile around your workshop and easy to store when not inuse.

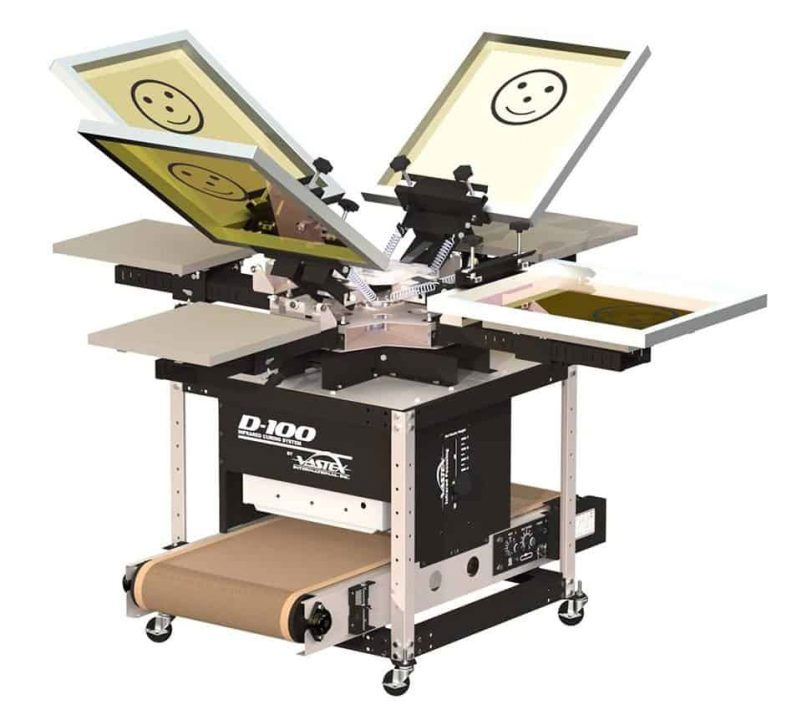

For maximum versatility, add the Optional Vastex D-100 Tunnel Drier under the Stand for a complete all in 1 print station.
Optional Pallets
- V100P-1016 (Youth) - 10x16” (25x41cm)
- V100P-1620 (Oversized) - 16x20” (41x51cm)
- V100P-SLS416 (Sleeve) - 4”x16” (25x41cm)
- Pallet adapters, attachments and quick stretch available
- Pallet rubber with adhesive
Shipping Not Included
We aim to keep costs low and on par with buying direct from the USA. This product is supplied at a discounted cost. When added to your cart, no free delivery options will be available.
Only one shipping cost will appear for this product. It is important to know in advance shipping costs are NOT included and will be in addtion to the listed purchase cost. Shipping is EXW Sydney warehouse and will be calculated Manually after order placement. After costs advised you have full option to accept or reject and cancel the order.
We recommend you create a Quote First.
Creating a Quote with this item first, separate to all other products, shipping can then be calculated separatrely.
QUALITY RESULTS
Achieved using registration-critical components from Vastex commercial and industrial models.
LOW COST
Innovative new design using fewer parts, lighter-duty construction, tabletop-only configuration, maximum 4-station/4-colors, omission of ultra-quick registration micros, and shipping disassembled.
EXPANDABLE
From 1-station, 1-color (1x1) to 4-station, 4-color (4x4).
LONG LASTING
All steel construction including pallets with optional rubber tops.
ADJUSTABLE
Screen off-contact and level adjustments.
ACCURATE
Floating head 3-point bearing locks for pinpoint registration.
PRODUCTIVE
All-heads-down printing.
EASY TO OPERATE
Rotor detent provides positive engagement of pallets.
CAPACITY
Maximum screen width (4-station, 4-color configuration all heads down): 21" (51 cm).
GUARANTEED
2 year warranty on manufacturer's defects.
Shipping Not Included
We aim to keep costs low and on par with buying direct from the USA. This product is supplied at a discounted cost. When added to your cart, no free delivery options will be available.
Only one shipping cost will appear for this product. It is important to know in advance shipping costs are NOT included and will be in addtion to the listed purchase cost. Shipping is EXW Sydney warehouse and will be calculated Manually after order placement. After costs advised you have full option to accept or reject and cancel the order.
We recommend you create a Quote First.
Creating a Quote with this item first, separate to all other products, shipping can then be calculated separatrely.
Technical Specifications V100-44
Warranty: 2 Year
Pallet Materials: Steel
Head Lifting Spring: Extension Spring
All Heads Down via: Floating Heads
Micro-registration: N/A
Leveling: Basic
Height legs to pallet N/A
Diameter (Standard): 71" (181 cm)
Diameter (Fully Extended): 86" (219cm)
Maximum Screen Width: 21" (53 cm)
Max. Screen Weight: 5.5 lbs (2.5 kg)
Maximum Standard Pallet Size: 16" x 20" (41 x 51 cm)
Fits Through 33" (84 cm) Doorway: Yes
Unit Weight 120lbs (54.5 kg)
* Warranty coverage applies to manufacturing defects only, not to normal wear or abuse.
** All shipping weights and dimensions are approximate and may vary at time of shipping.
*** Max screen width is applicable when all heads have screens loaded. Larger screens will fit when the neighboring heads are empty. Max screen weight is the limiting factor when all screens are not loaded.
Assembly
Approximate assembly time is two to four hours.
- View the V100 Assembly Manual here now
Optional Pallets
- V100P-1016 (Youth) - 10x16” (25x41cm)
- V100P-1620 (Oversized) - 16x20” (41x51cm)
- V100P-SLS416 (Sleeve) - 4”x16” (25x41cm)
- Pallet adapters, attachments and quick stretch available
- Pallet rubber with adhesive
Shipping
3 Cartons: 25x25x7” (64 x 64 x 18 cm) + 19x17x7” (49 x 44 x 18 cm) + 13x13x7” (33 x 33 x 18 cm)
Shipping Weight: 129 lbs (58.6kg)
Only one shipping cost will appear for this product. It is important to know in advance shipping costs are NOT included and will be in addtion to the listed purchase cost. Shipping is EXW Sydney warehouse and will be calculated Manually after order placement. After costs advised you have full option to accept or reject and cancel the order.
| SKU | VASTEX-V100-44 |
| Brand | Vastex |
| Shipping Weight | 58.6000kg |
| Shipping Width | 0.640m |
| Shipping Height | 0.540m |
| Shipping Length | 0.640m |
| Shipping Cubic | 0.221184000m3 |
Vastex warranty coverage applies to manufacturing defects only, not to normal wear or abuse.
