MiScreen-Air Complete Package | Pro Series App imaging over WiFi using Tablets/ iPads/ Phones and devices
Print via app over Wi-Fi from devices (no computer).
MiScreenSKU: MSAIR-PRO
MiScreen-Air Pro Package
Pro series kit includes all mesh grades, additional frames and supplies plus the MiScreen-Air Connection Kit for both computer and wireless connection and printing.
MiScreen-Air allows iPads/ Android Tablets/ Phones & Chromebooks to directly connect and image screens over Wi-Fi to the MiScreen machine.
- For full product info visit - https://www.goccopro.com.au/MiScreen/Air/MSAIR-EDU.html
- App download and usage visit - https://www.goccopro.com.au/MiScreen/Air/software.html
MiScreen-Air pairs a wireless Access Point to a NEHOC-SILEX Print Server, both of which have been programmed and paired together, to send images from tablets, devices or phones using the all new MiScreen-Air App.
With several advantages over Windows PC/ macOS Desktop Application Software, MiScreen-Air gives you greater control of design quality, size and position whilst removing the need to connect to a computer. In App photo printing is more detailed with inbuilt adjustable dot screening - try the App yourself now.
Software App Advantages
- Photographic and halftone images print with greater detail, without the need for creating a dot screen overlay first.
- Combine/move/position multiple designs to save mesh.
- Easily tile or repeat the same design from within in the App.
- Overlay multiple images to create an all new design.
- Free App, no subscriptions of fees.
- Multiple devices can be connected making classroom use even easier and faster.
Hardware Advantaged
- Use iPads, Android Tablets, Chromebooks, phones and devices with the App.
- MiScreen becomes mobile and portable - No computer connection needed - place machine anywhere.
- Compact design makes storage easy after use.
- Paired set for fast setup and easy connection every time.
- Screens are sent directly from the device to the MiScreen and imaged.
Safe and Secure Using Local WiFi
Designed for use in schools without IT issues, no internal network connections and no internet concerns, the MiScreen-Air Connection Kit uses a programmed unique 'closed loop' WiFi that only communicates between the MiScreen-Air App and NEHOC-SILEX Print Server (connected to MiScreen machine).
- No data collection or data sharing is used within the App.
- WiFi connection is not public, a simple password is used and labelled on each Access Point supplied.
- Connection is local between the App and the local WiFi - there is no WiFi connection to the internet enabled making it impossible for students to connect. In addition the school or business firewall will not block a connection, as there is no attempt to make any connection.
- Access Point has Internet Access turned off as it is not required for this application.
- No IP address or dedicated Newtork IP required, DCHP is active as only connects to the local NEHOC-SILEX Print Server nothing else.
- App connection is to the local 'MiScreen-Air WiFi' this will not appear on any wired school/ office network or attempt to make an outside connection.
With security concerns always a large part of the broader IT system, the MiScreen-Air system has been designed and programmed to be simple, fast to connect and local to avoid ongoing issues and external problems.
All you have to do is download the App . . .which itself is verified by both Apple and Google Play stores.
RISO Digital 'P' type mesh
Screen Imaging: Digital Screen Maker - dry thermal screen imaging
Resolution: 203dpi
Artwork to imaged screen in less than 30 seconds.
Image Area: 210 x 300mm (onto 250 x 370mm Mesh)
Full Frame Size: ID: 250 x 370 (Image 210x300mm)
Half Frame Size: ID: 210 x 250 (Image 150 x 210mm)
PC Connectivity: Windows, Macintosh (dedicated software)
File Format: PDF, JPEG, PNG, BMP
Transport Damage must be notified prior to install/ usage.
- The product will be safely packaged and shipped.
- Upon receipt, please immediately check your package contents carefully.
- Where damage to the item occurs in transport, is MUST be reported within 24 hours of delivery.
- Where the customer fails to notify us of transport damage within the 24hour period, it is acceptance the customer forgoes all claims for damages, incorrect description, damaged product, incorrect product description and claim for transport damage.
The above conditions have been instigated due to fraudulent claims by customers for transport damage following improper unpacking/ usage/ handling of the product.
- The part remains warranted against faulty manufacture at all times, not improper usage by the customer.
Print & Frame Size
Max Print Size on Full Design Frame: 210x300mm
Max Print Size on Half Designs Frame: 150x210mm
Suitable Frame: FP-MS1/ FP-MS1-NT/ FP-MS2/ FM-MS2-NT
Suitable Squeegee: SQ-P3/ SQ-P6/ SQ-110/ SQ-170/ SQ-240

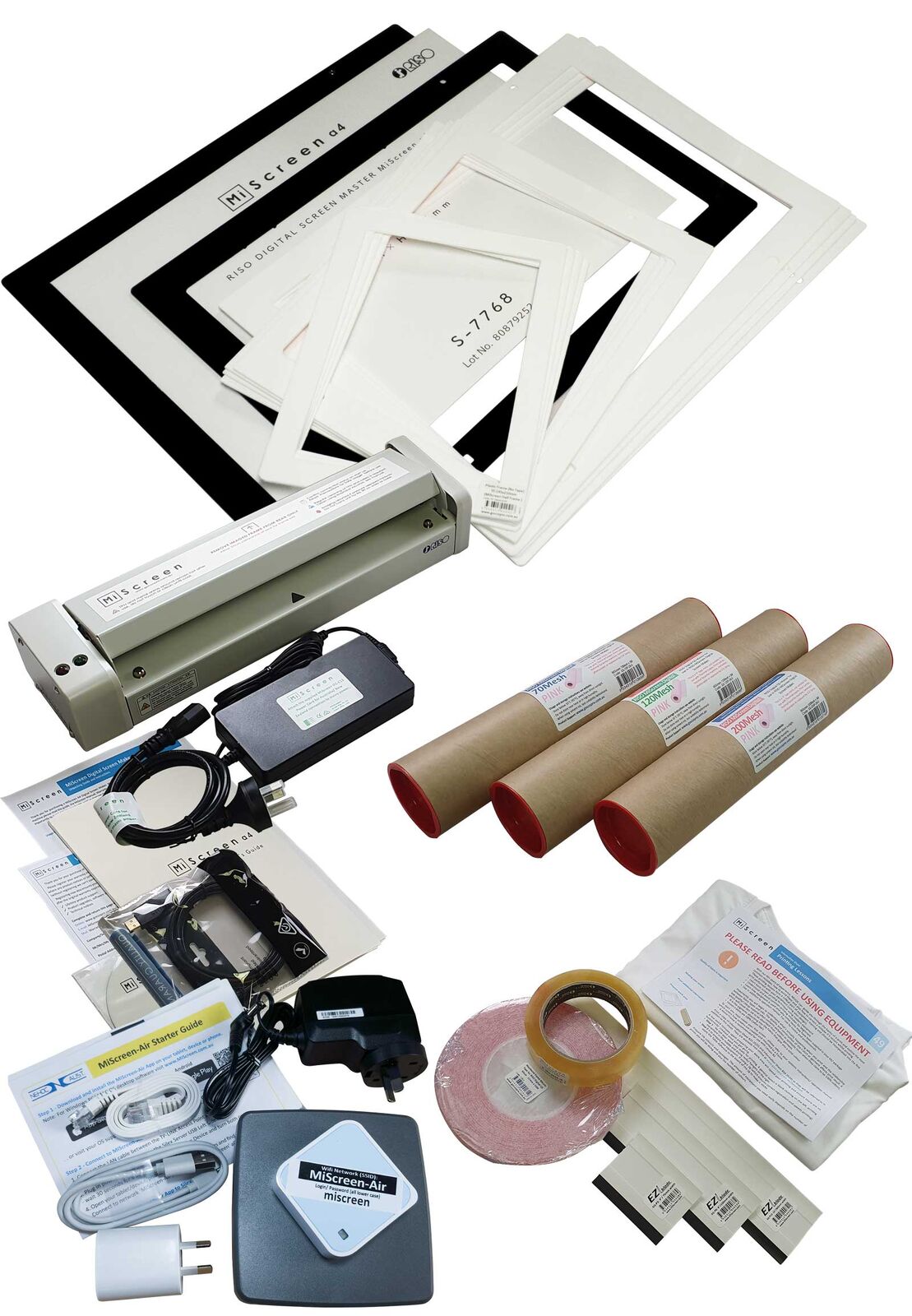

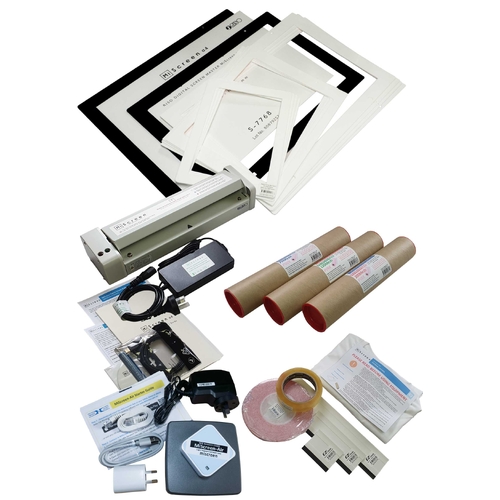

Kit Contents

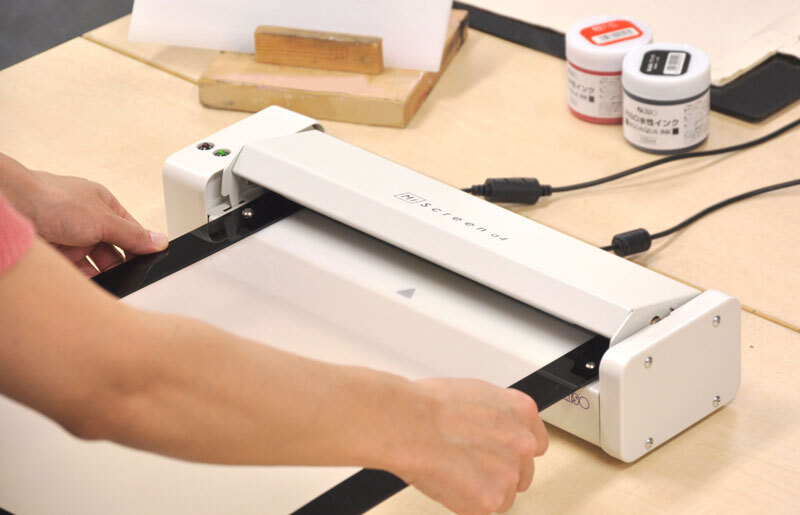

RISO MiScreen A4 DSM Unit
5 x MiScreen 120Mesh Pre-cut Sheets (S-7768)

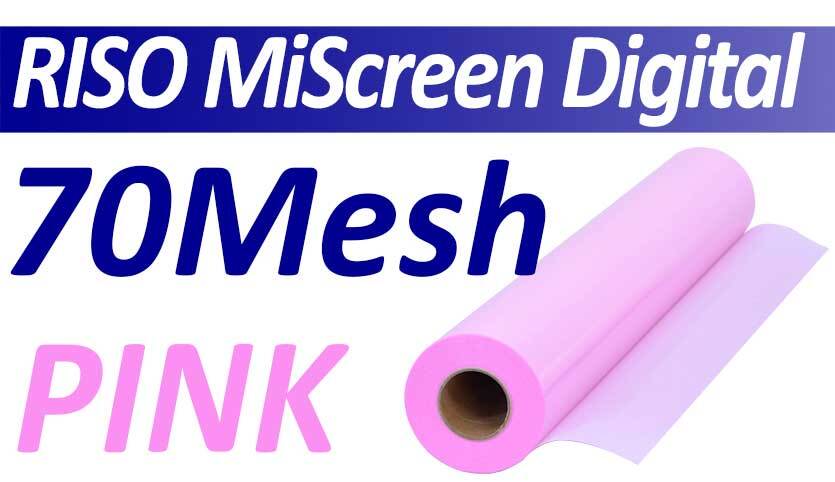

5 Metres x MiScreen 70Mesh (QS-70P-28-5)

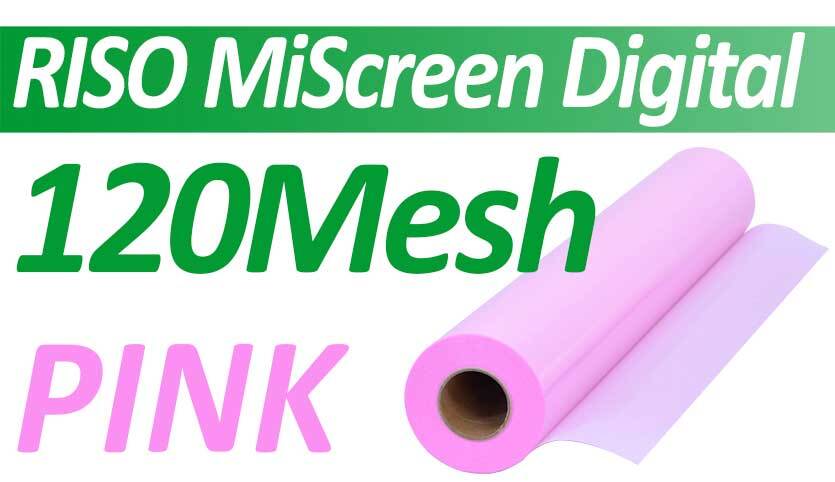

5 Metres x MiScreen 120Mesh (QS-120P-28-5)

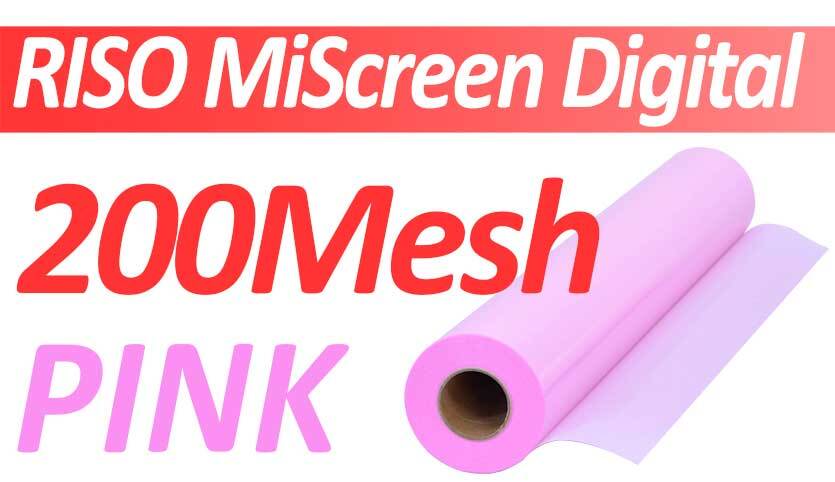

5 Metres x MiScreen 200Mesh (QS-200P-28-5)
1 x RISO MiScreen A4 Design Frame ID: 250x370mm (S-8315)

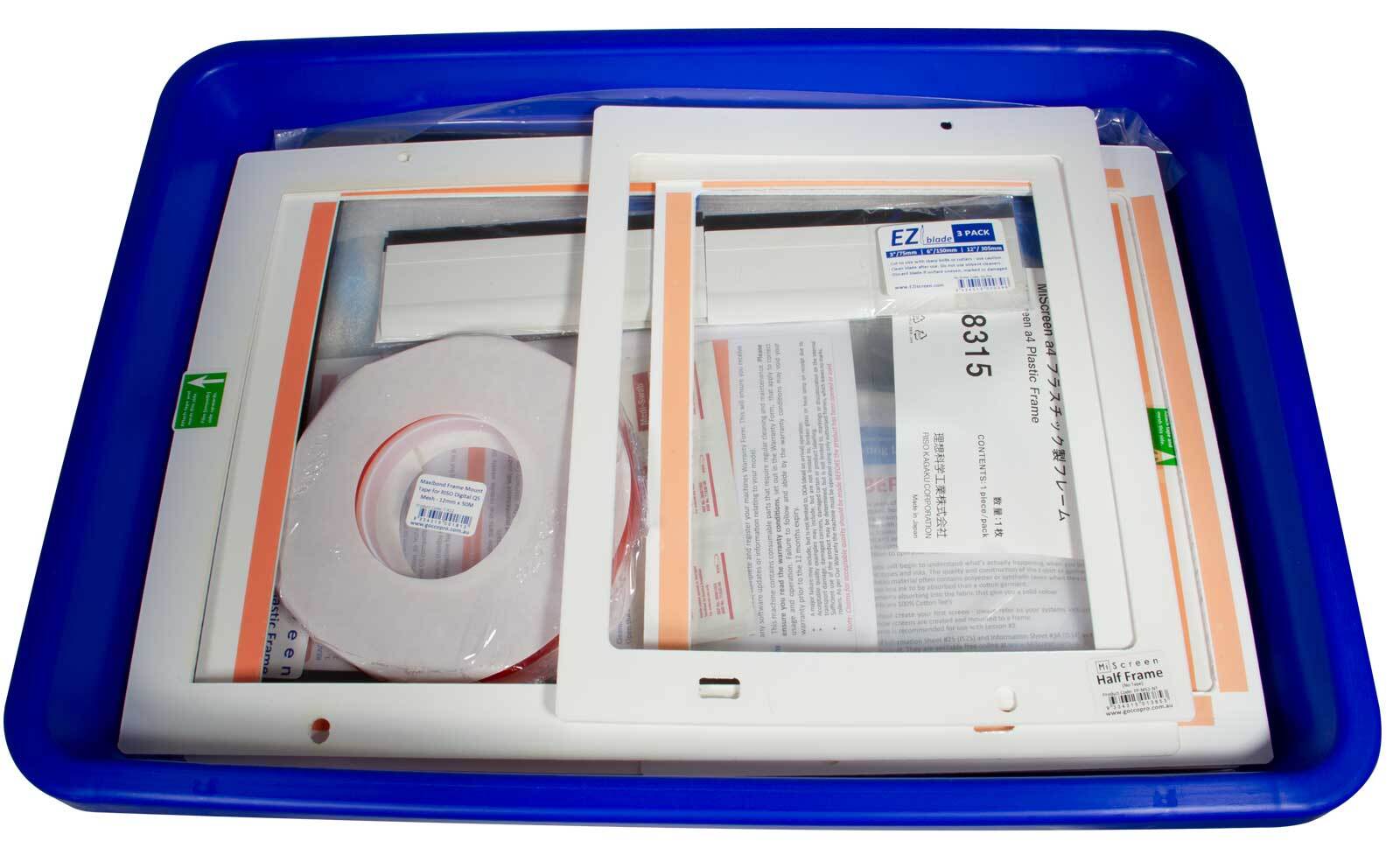

4 x MiScreen A4 Design Frame ID: 250x370mm (1 taped + 3 plain)
4 x MiScreen A5 Design Frame ID: 250x210mm (1 taped + 3 plain)
1 x RISO MiScreen A4 Printing Board
1 x Red MaxiBond (Ultra Adhesion) Double Sided Tape (25M Starter Pack Size)
1 x 3”/75mm EZIblade Squeegee
1 x 6”/150mm EZIblade Squeegee
1 x 12”/305mm EZIblade Squeegee
1 x Screen Masking Tape (T24)
NEHOC Printing Lesson #1 Standard Inks
1 x T-shirt Sample For Printing Lesson #1
1 x Power Transformer with Australian Cord
1 x USB Connection Cable
1 x MiScreen Instruction Book plus Software CD

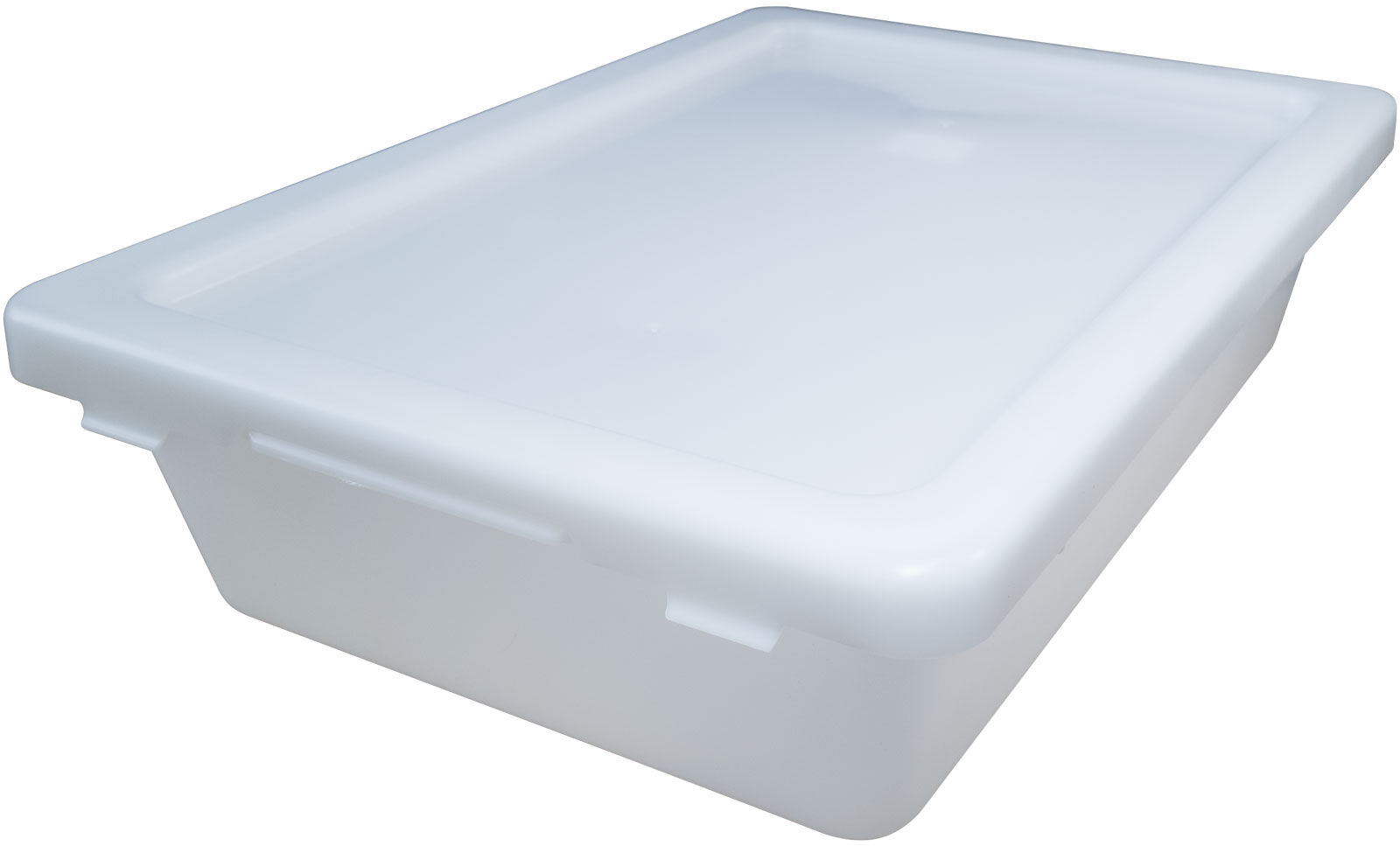

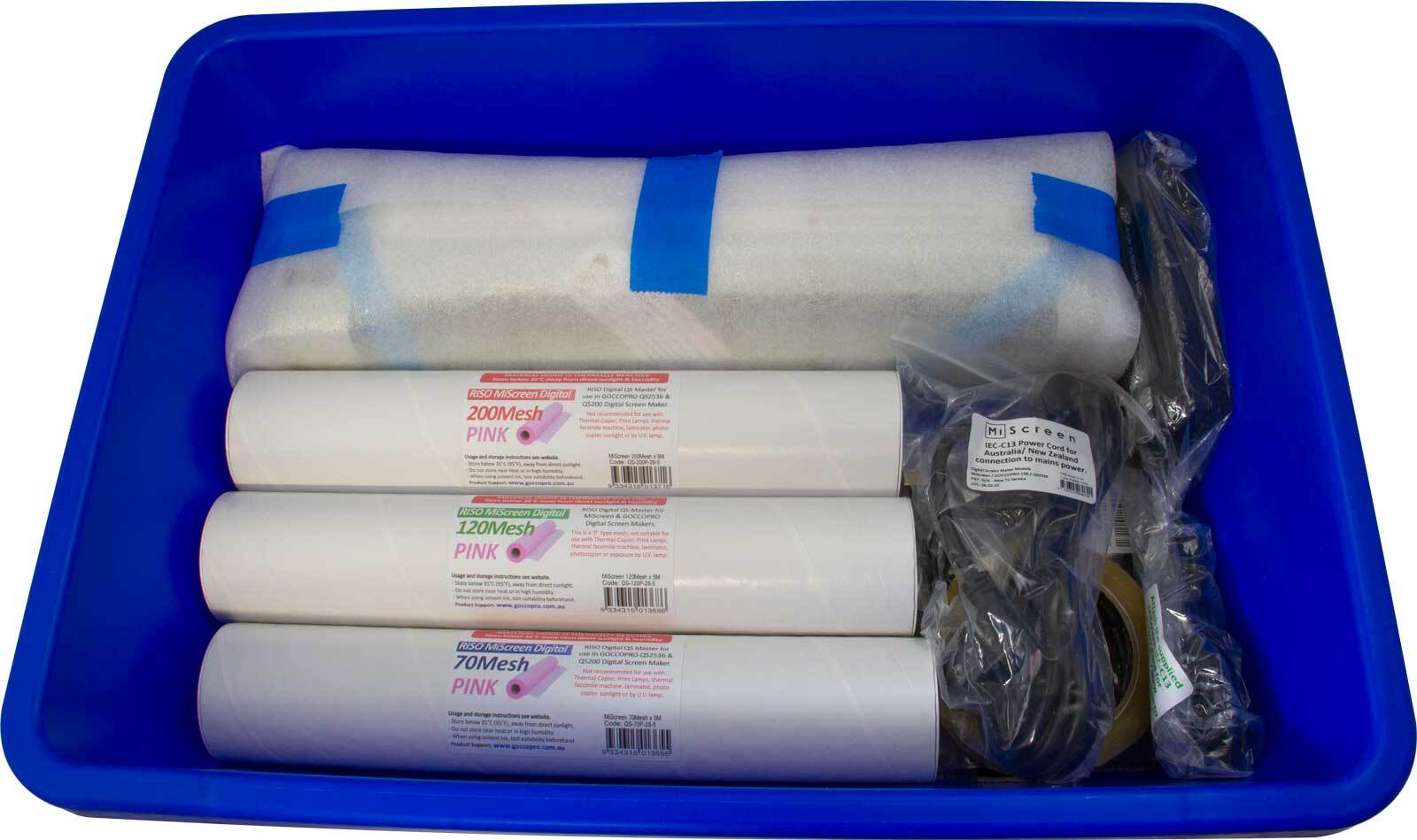

INCLUDES MiScreen Storage Container with lid.
SPECIAL OFFER
- SUPPLIED FREE 1 x RISO MiScreen Frame ID: 250x370mm (Plain)
Dimensions
Package LWH: 55 x 39 x 14cm | Package Weight: Approx. 7.6Kg
Shipping: 56 x 46 x 17cm | Shipping Weight: Approx 9.3Kg
| SKU | MSAIR-PRO |
| Barcode # | 9334315020059 |
| Brand | MiScreen |
| Shipping Weight | 9.3000kg |
| Shipping Width | 0.560m |
| Shipping Height | 0.170m |
| Shipping Length | 0.460m |
| Shipping Cubic | 0.043792000m3 |
| Unit Of Measure | Set |
