RISO MiScreen a4 Digital Screen Maker Starter Kit
All new replacement to (analogue) Thermal-Copier systems
MiScreenSKU: DSM-MS1
Digital Screen Making
MiScreen uses digital technology to provide fast, high quality results onto the new generation of RISO Digital QS ‘P’ type Mesh, for stronger more durable screens at a lower cost than previous ‘S’ type mesh.
Imaging directly from your computer to the MiScreen machine eliminates all artwork films, carbon copies and artwork transfers to improve quality, dramatically lowers costs and creating a screen from your designs has never been faster.

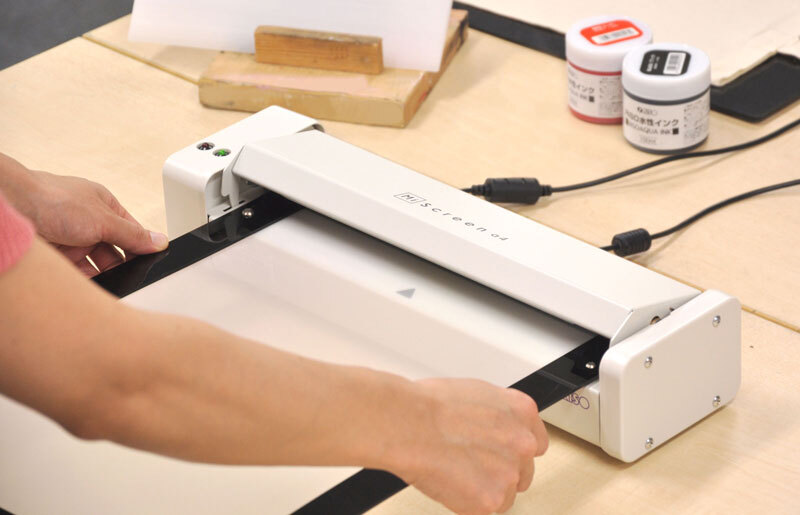

Just load your design into the dedicated software (PC & MAC), then simply send to the MiScreen with a click of a button, place your mesh (mounted to a frame) into the machine and lower the lid to begin creating your screen.
No Carbon Artwork
The discontinued (analogue) Thermal-Copier model required carbon photocopies for artwork, MiScreen eliminates all artwork by using 'cts' technology 'Computer to Screen'.
No films, no positives, no cutting, no emulsions, no dark rooms. cts replaces it all, with higher quality as there's a direct burn from image to screen.
Improved Quality & Lower Costs
Using the new RISO Digital 'P' type thermal mesh ('S' type discontinued) quality is improved and screen life is improved through a stronger mesh construction.
3 mesh grades are now available - 70Mesh, 120Mesh & 200Mesh - with 120Mesh the new default for all fabrics/ paper and general applications. 70Mesh for coarse designs and solid supercover prints, 200Mesh for ultra fine details onto plastics/ metal/ glass.
Pack contents listed under specifications tab.
NB: Plastic Squeegee pictured no longer available
RISO Digital 'P' type mesh
Screen Imaging: Digital Screen Maker - dry thermal screen imaging
Resolution: 203dpi
Artwork to imaged screen in less than 30 seconds.
Image Area: 210 x 300mm (onto 250 x 370mm Mesh)
Full Frame Size: ID: 250 x 370 (Image 210x300mm)
Half Frame Size: ID: 210 x 250 (Image 150 x 210mm)
PC Connectivity: Windows, Macintosh (dedicated software)
File Format: PDF, JPEG, PNG, BMP
Transport Damage must be notified prior to install/ usage.
- The product will be safely packaged and shipped.
- Upon receipt, please immediately check your package contents carefully.
- Where damage to the item occurs in transport, is MUST be reported within 24 hours of delivery.
- Where the customer fails to notify us of transport damage within the 24hour period, it is acceptance the customer forgoes all claims for damages, incorrect description, damaged product, incorrect product description and claim for transport damage.
The above conditions have been instigated due to fraudulent claims by customers for transport damage following improper unpacking/ usage/ handling of the product.
- The part remains warranted against faulty manufacture at all times, not improper usage by the customer.
Print & Frame Size
Max Print Size on A4 Design Frame: 210x300mm
Max Print Size on A5 Designs Frame: 150x210mm
Suitable Frame: FP-MS1/ FP-MS1-NT/ FP-MS2/ FM-MS2-NT
Suitable Squeegee: SQ-P3/ SQ-P6/ SQ-110/ SQ-170/ SQ-240

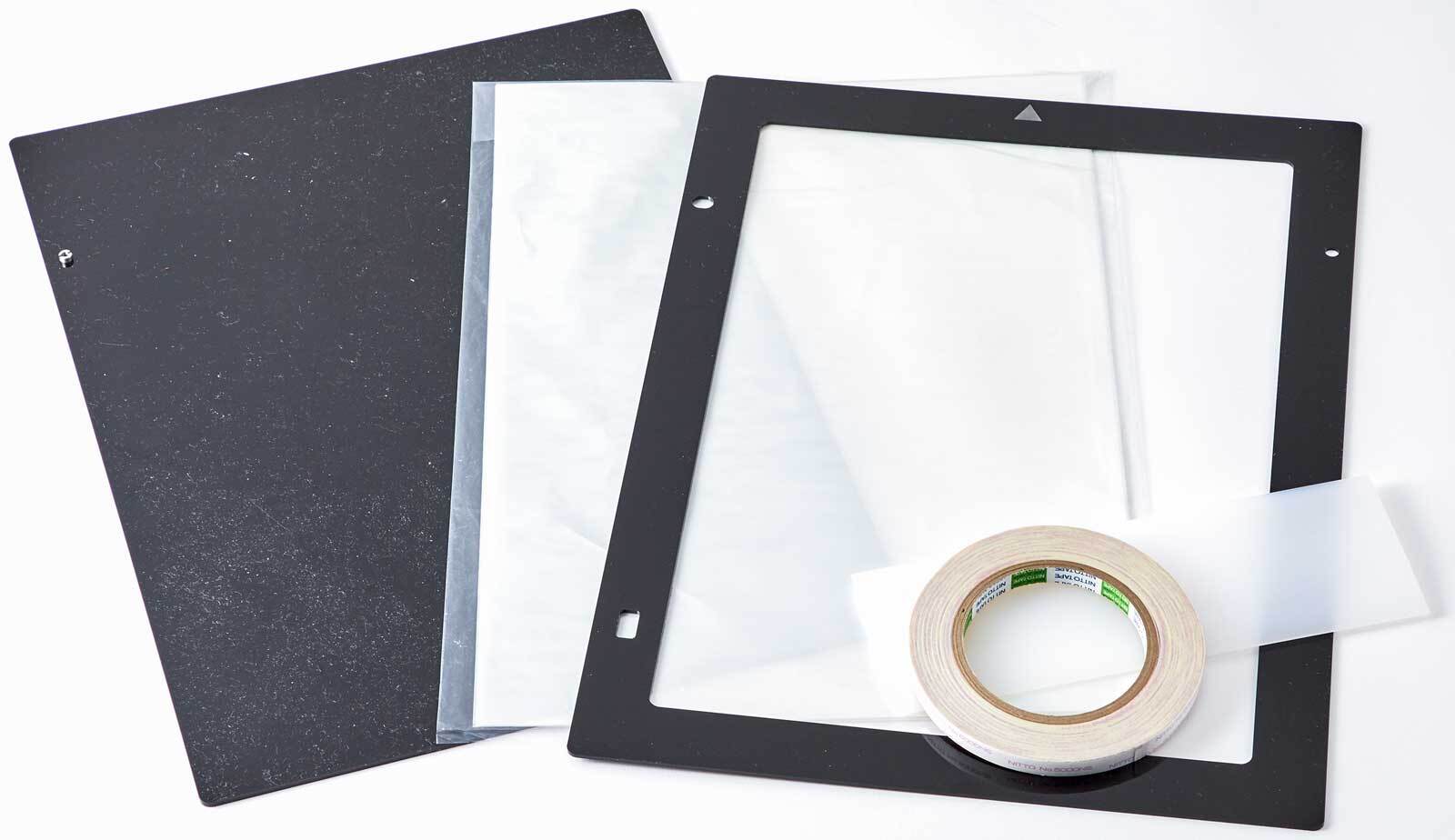

Kit Contents
1 x RISO MiScreen A4 DSM Unit
5 x MiScreen 120Mesh Precut Sheets
1 x RISO MiScreen Frame ID: 250x370mm (Plain)
1 x MiScreen A4 Design Frame ID: 250x370mm (Plain)
1 x MiScreen A5 Design Frame ID: 250x210mm (Plain)
1 x Roll Double Sided Tissue Tape
1 x RISO MiScreen A4 Printing Board
1 x MiScreen Instruction Book
1 x Software CD-ROM
1 x Power Transformer with Australian Cord
1 x USB Connection Cable
1 x Warranty Form
1 x Unpacking & Usage Guide
