Frame Hinge Clamp Set 2 | Accurate registration | Australian Stocks

Print registration and elevated/ off contact printing.

NEHOCSKU: SPJ-H

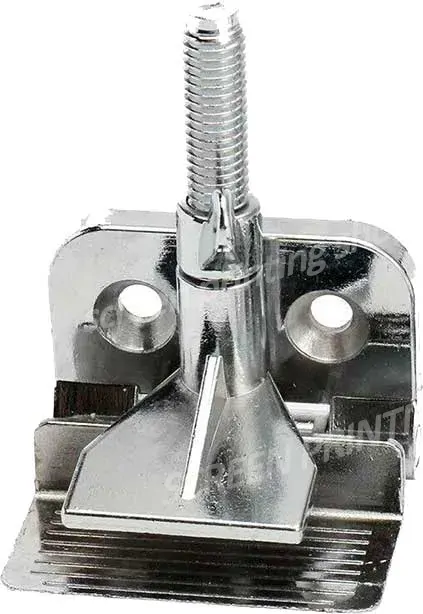

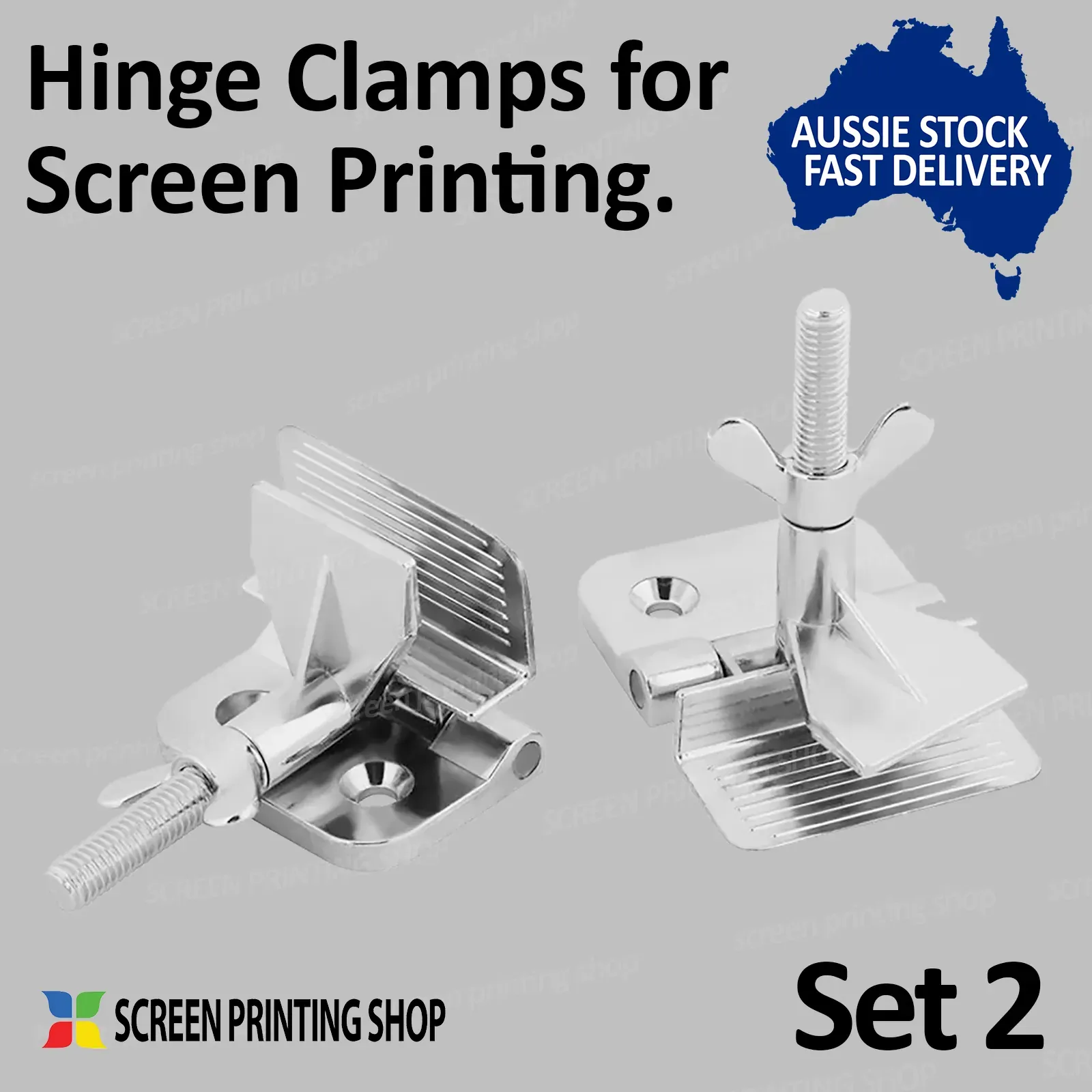

Butterfly hinge clamp is a low cost entry into print registration using hinges to hold your frame, or elevated/ off contact printing applications. Supplied in a set of two, easy mounting to by screws or clamp.

$26.18

RRP $27.95
SAVE $1.77
In Stock

In Stock

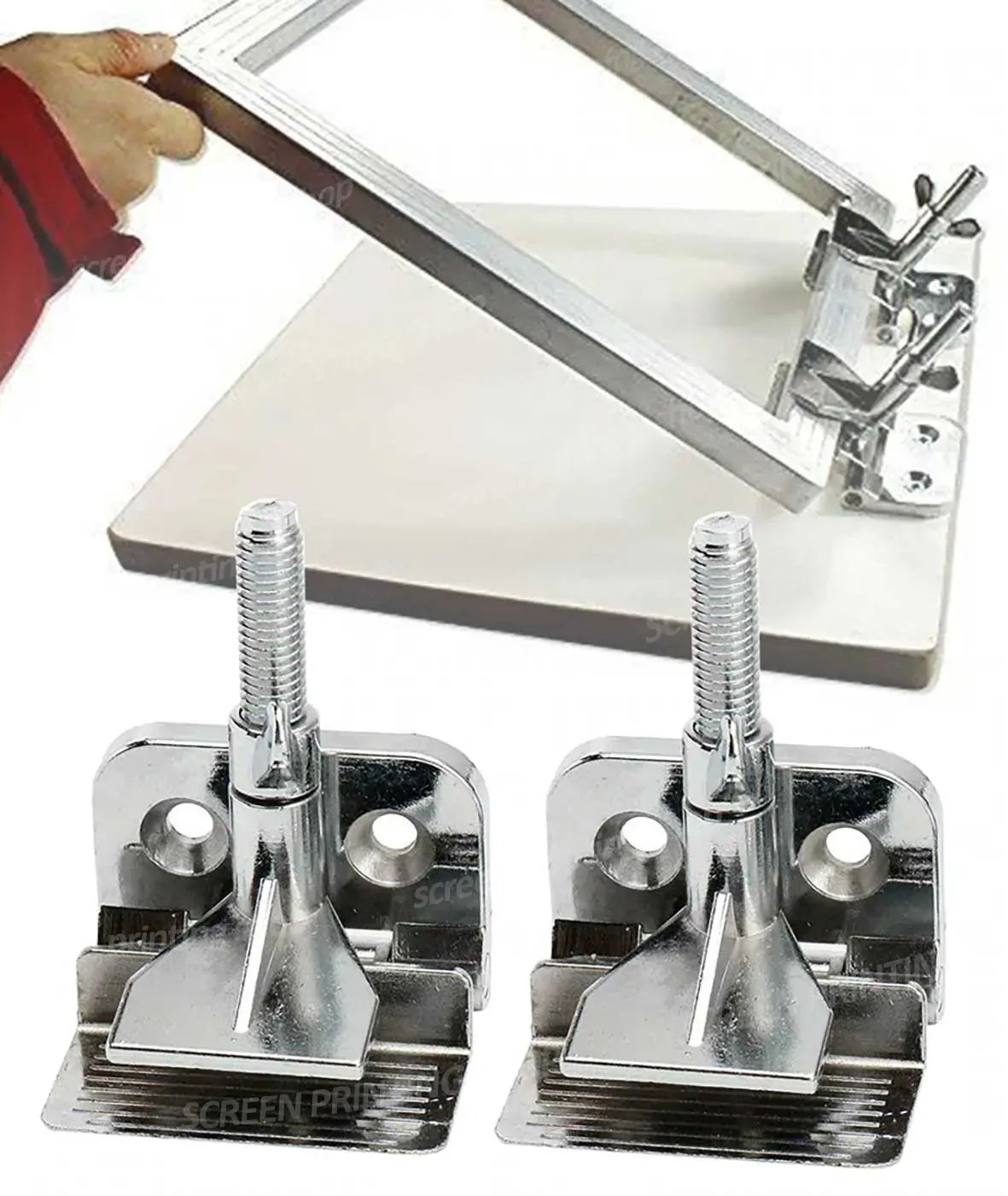

Butterfly hinge clamp set is a low cost entry into print registration using hinges to hold your frame, or elevated/ off contact printing applications.

Metal frame inside Jig Hinge Clamps for direct printing

- Suitable for both off contact or direct printing applications

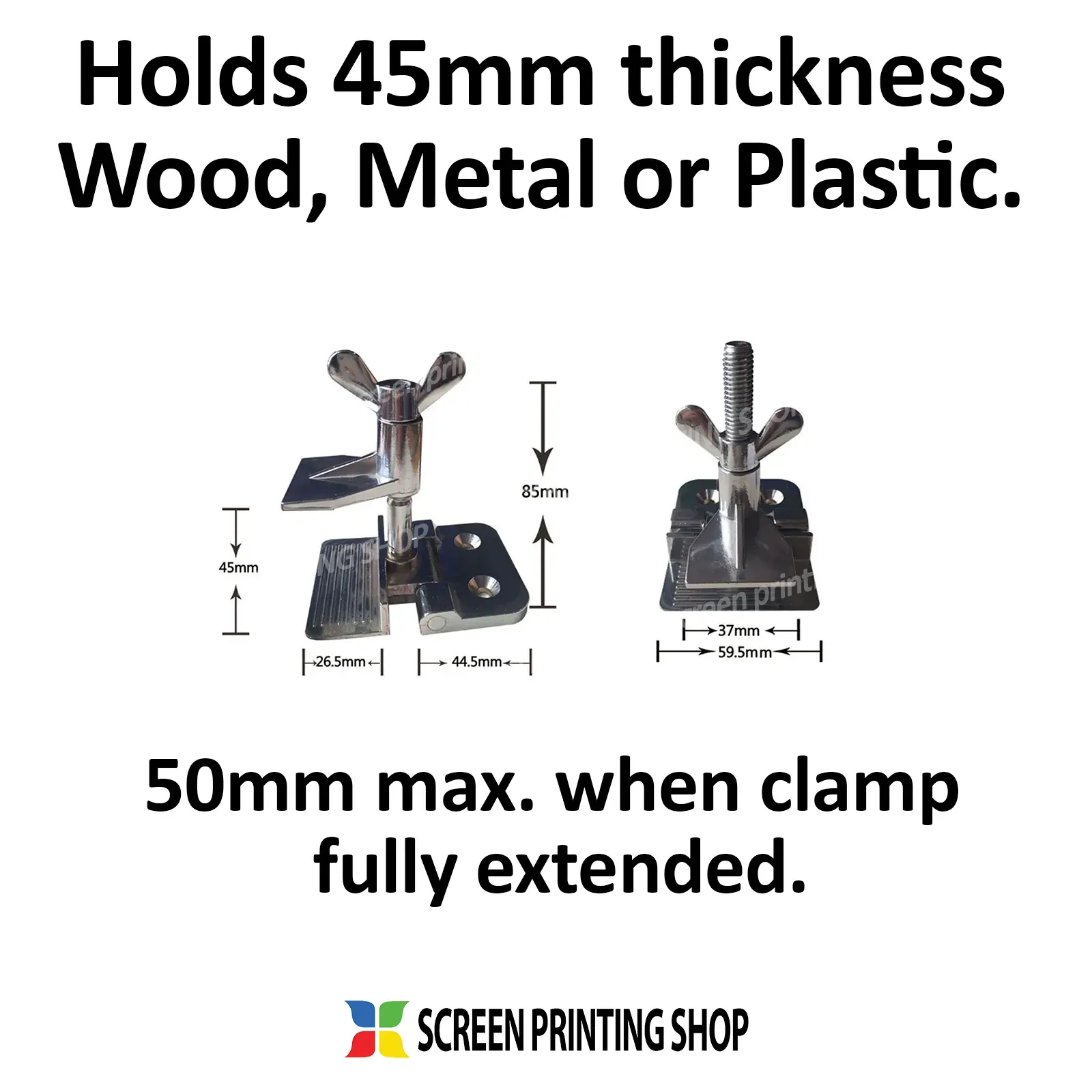

- 45mm clamp width/ 50mm maximum recommended opening
- Suitable for all frame sizes/ types, including plastic and metal frames
- Compact size, light weight & portable for easy storage when not in use.

Supplied in a set of two, with easy mounting to almost any surface by screws, bolt or clamp.

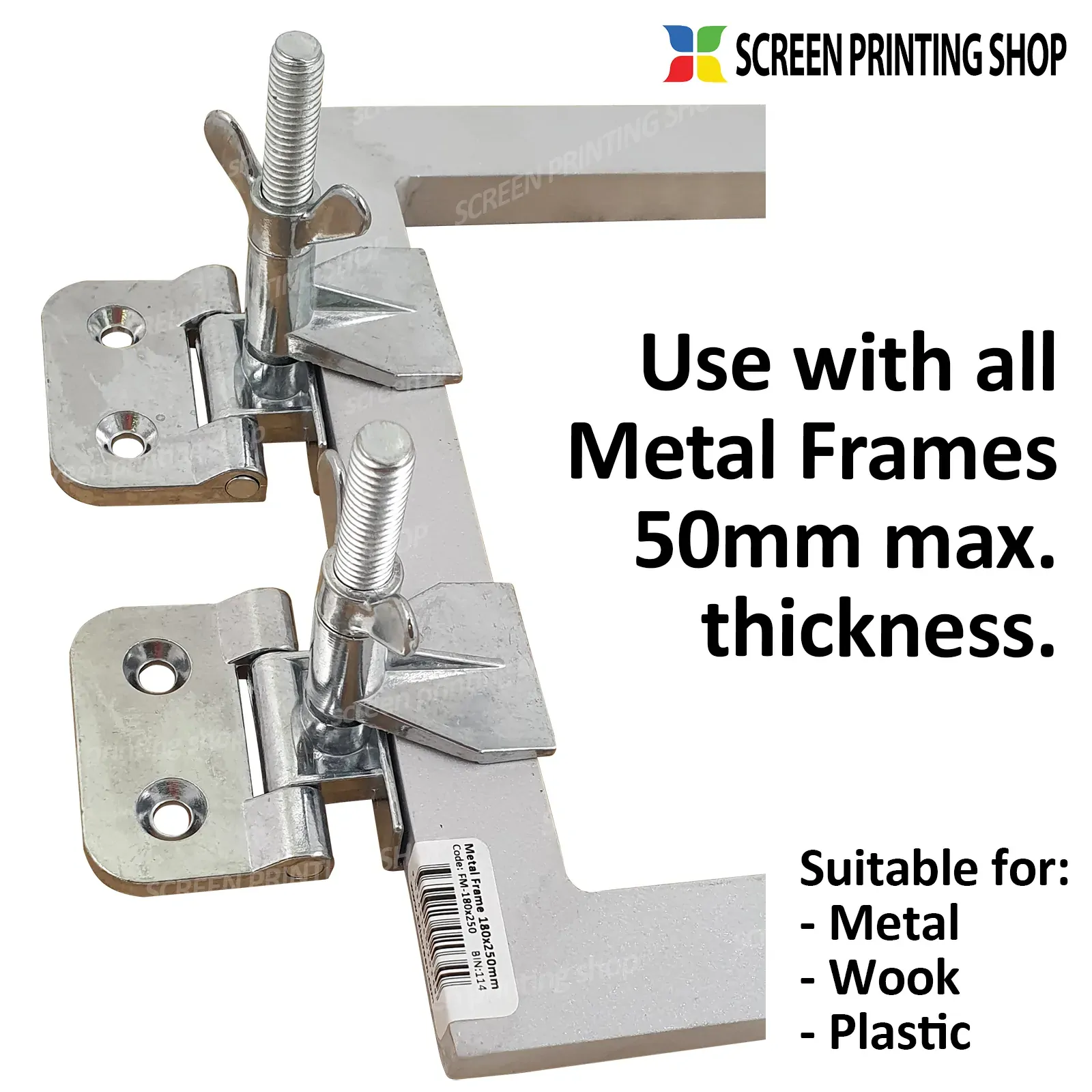

Using Metal Frames

Metal Frame mount fit directly  into the clamp for direct printing, without need for spacers on top.

When printing items elevated/ off contact, plastic height adjusters are inserted under the metal frame to raise to the required height for printing.

Download instruction guide for registering single colour prints here . .

Download details for setting up a screen for elevated/ off contact printing here . .

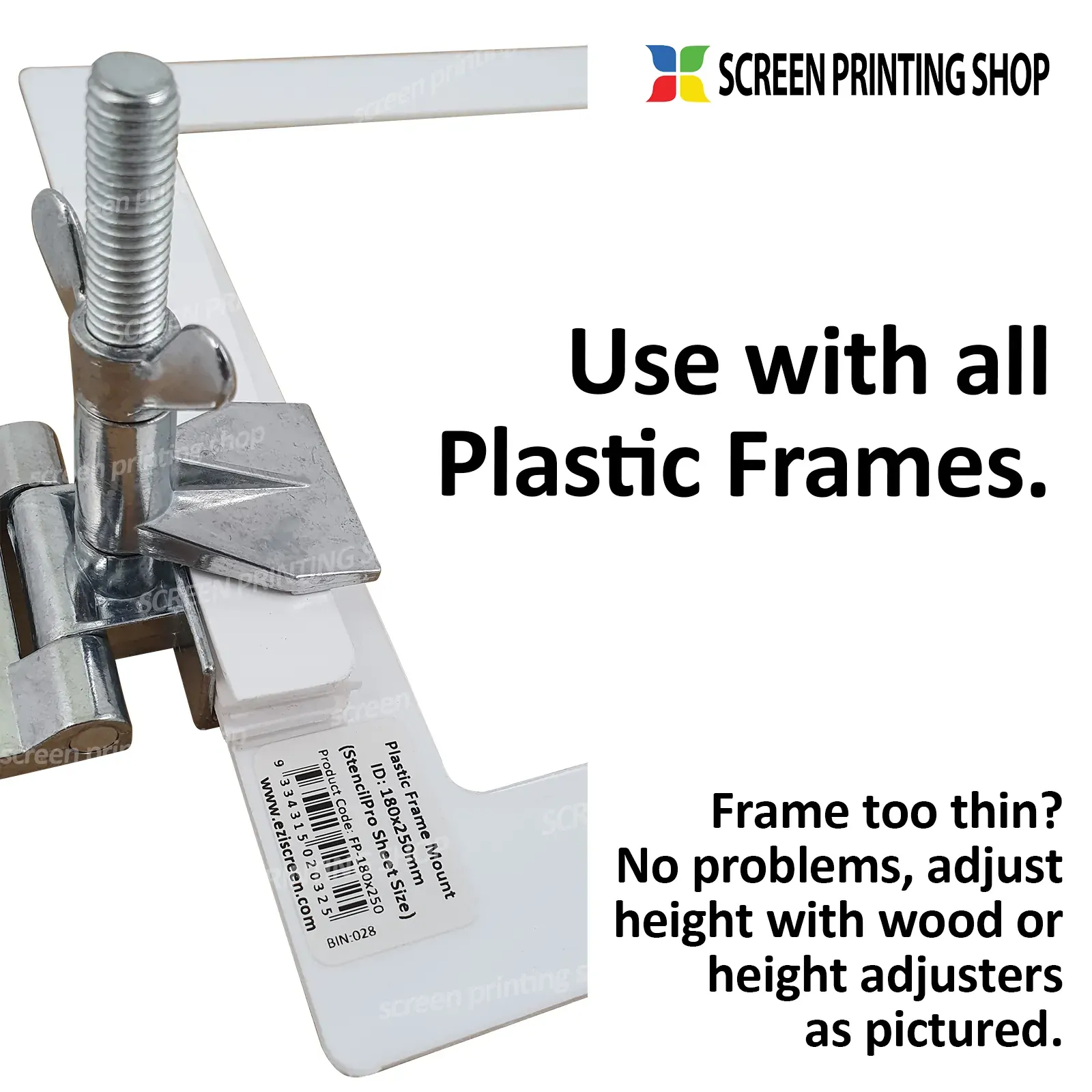

Plastic frame inside Jig Hinge Clamps for direct printingUsing Plastic Frames

The thinner construction of plastic frames requires plastic height adjusters to be placed on top of the frame to achieve tight bond, as pictured right.
- A metal/ wooden block or similar object may also be used.

Plastic frames are best suited for direct printing applications.

The flexible construction of plastic frames does not suit elevated printing unless all sides of the frame are supported to stop flexing whilst printing. We recommend using Metal Frames for elevated/ off contact printing applications.

Download instruction guide for registering single colour prints here . .

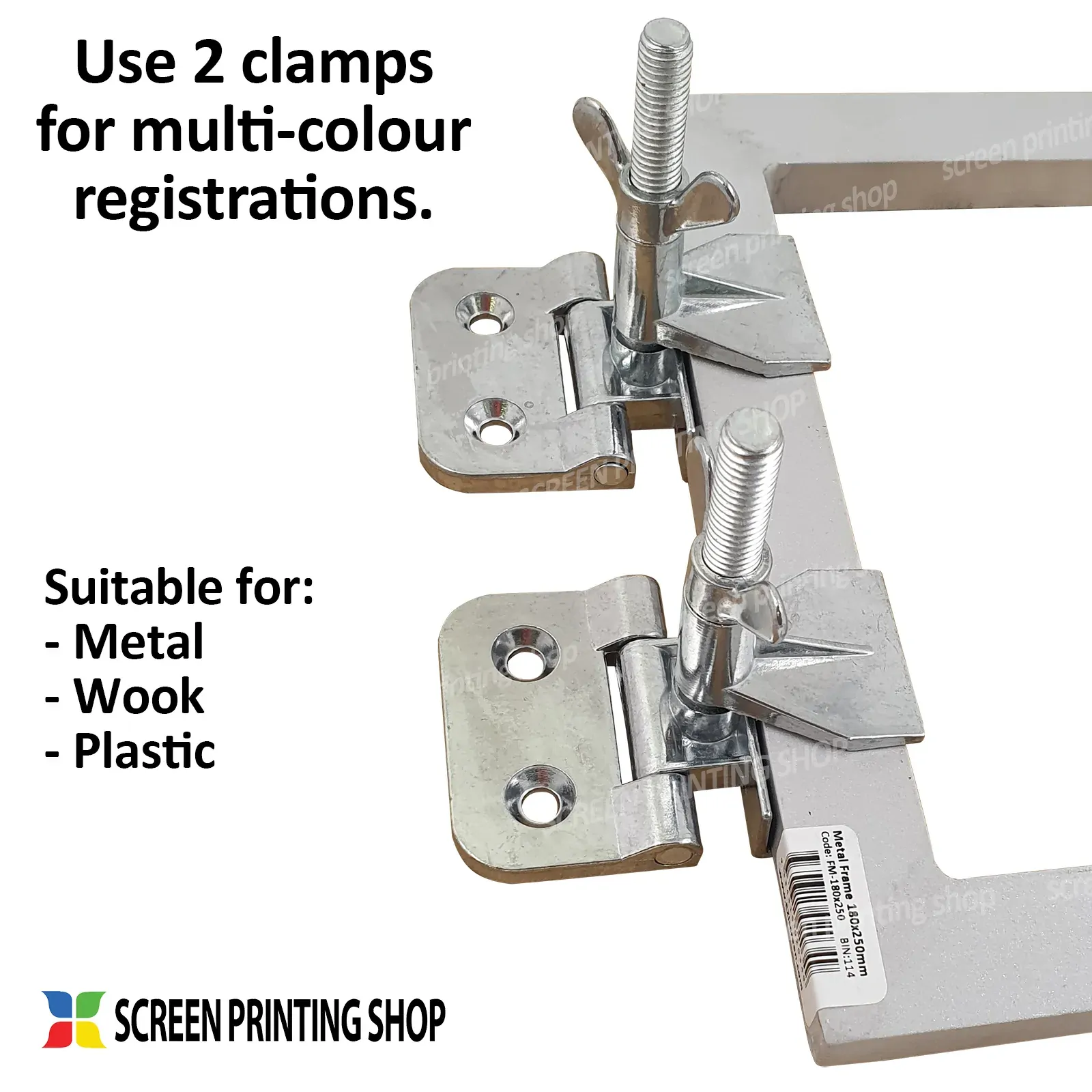

Print Registration

Jig Hinges hold only one frame at a time for single colour printing. Multiple colour printing is available using registration marks for separate prints overlaying the new colour on top of the previous. This is suitable for solid objects and items that will not resize during movement.
- This process is not recommended for fabrics as too much movement will occur - unless second print/ layer is not close and accurate registration is required.
- For accurate multi layered registration a jig/ carousel is recommend.

Shipping Notice - No Free Options

As you can calculate, this product is supplied at a heavily discounted cost. When added to your cart, no free delivery options will be available due to the weight and bulk of the product.
- If you qualified for a free delivery option with other items in your cart, we suggest splitting your order into two parts and making an ink only order. Orders can not be split after submitting.

To calculate shipping costs, use the shipping calculator on the product page, or add items to cart, view the cart and enter your post code to display available options.
- If an option does not appear, create a Quote and contact us for a shipping cost.

Shipping Notice - No Free Options

As you can calculate, this product is supplied at a heavily discounted cost. When added to your cart, no free delivery options will be available due to the weight and bulk of the product.
- If you qualified for a free delivery option with other items in your cart, we suggest splitting your order into two parts and making an ink only order. Orders can not be split after submitting.

To calculate shipping costs, use the shipping calculator on the product page, or add items to cart, view the cart and enter your post code to display available options.
- If an option does not appear, create a Quote and contact us for a shipping cost.

Quantity: Set 2 pieces
Max Frame Width: 50mm (45mm recommended)

SKU SPJ-H
Barcode # 9334315020721
Brand NEHOC
Shipping Weight 0.4500kg
Shipping Width 0.120m
Shipping Height 0.100m
Shipping Length 0.090m
Shipping Cubic 0.001080000m3
Unit Of Measure ea
Type Set 2 Hinges
