T-shirt Jig Carousel | Register 1-4 colours accurately | Wooden construction is low cost and light weight | XL Printing Board included FREE
Multi-colour print registration onto t-shirts/ fabrics
SKU: SPJ-4SK

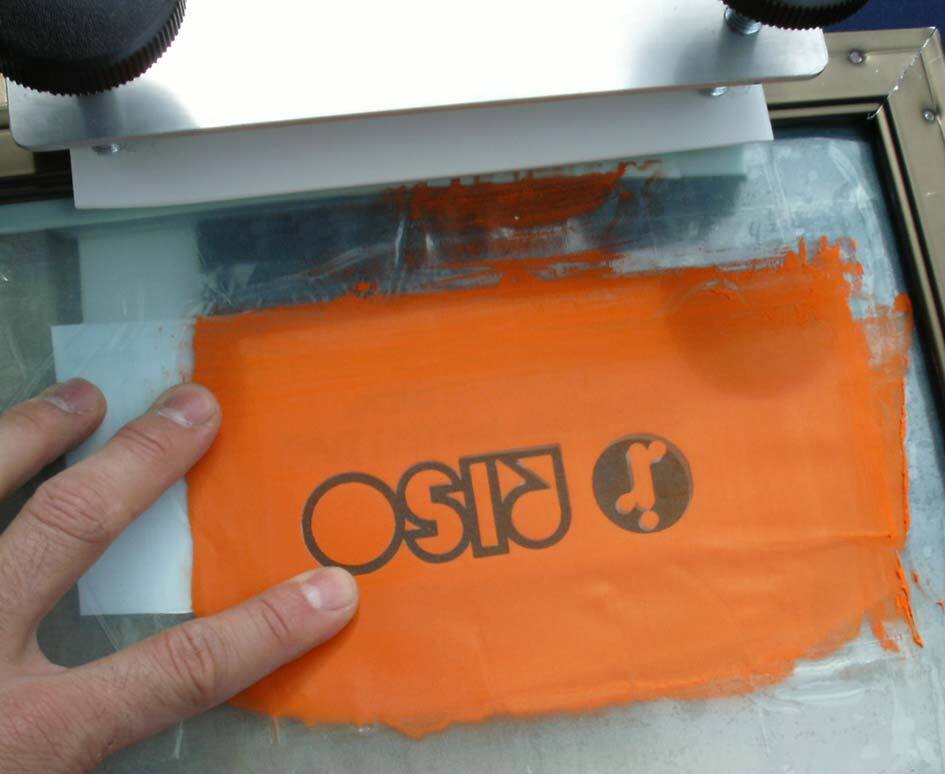

Printing multiple colours requires the overlay of different screens, correctly aligned, to form a completed design - your multi colour design is printed in multi layers.

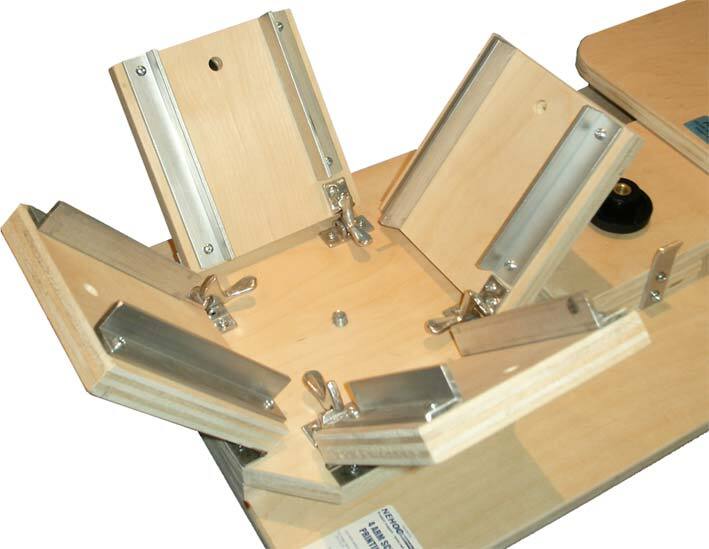

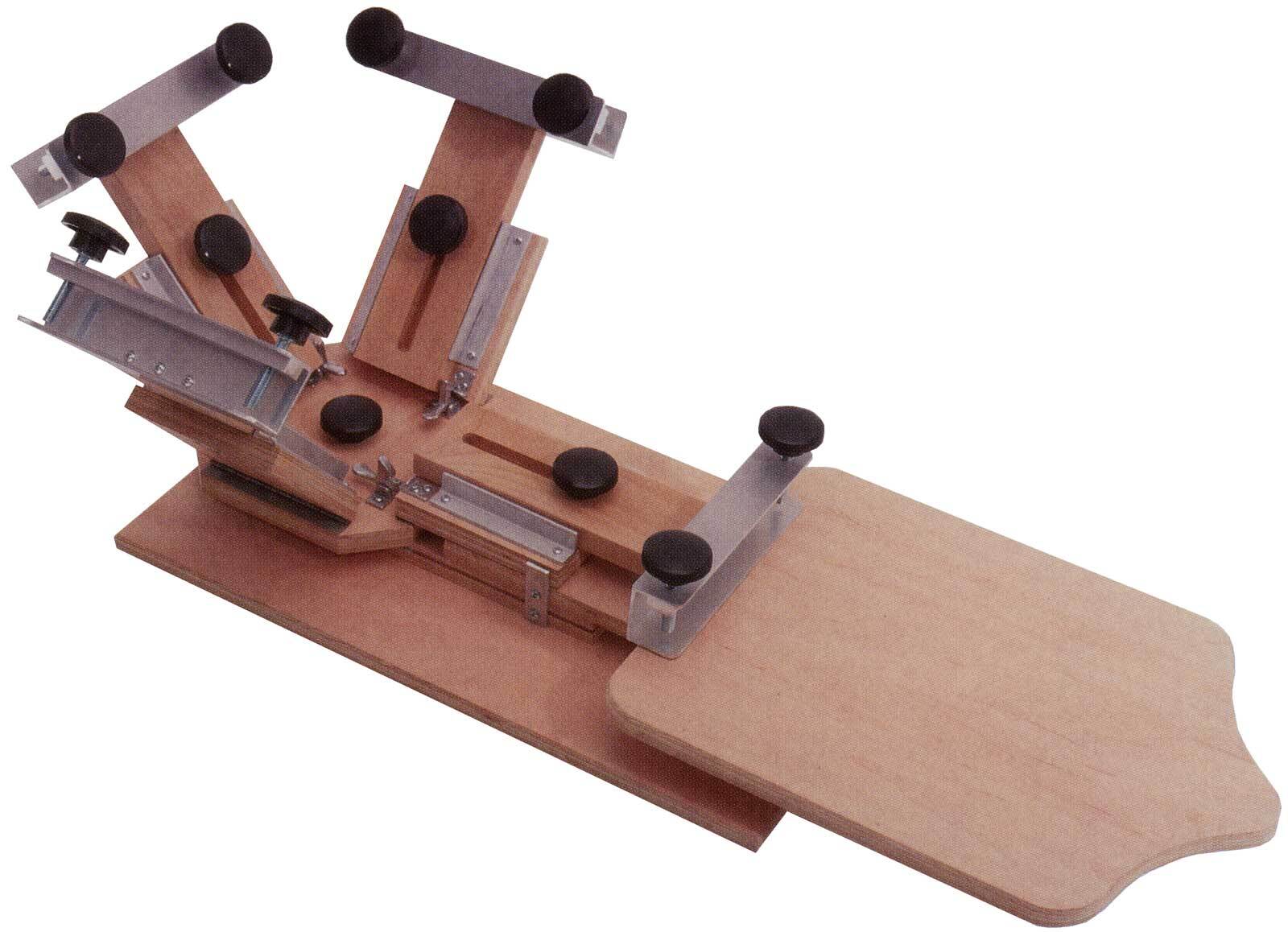

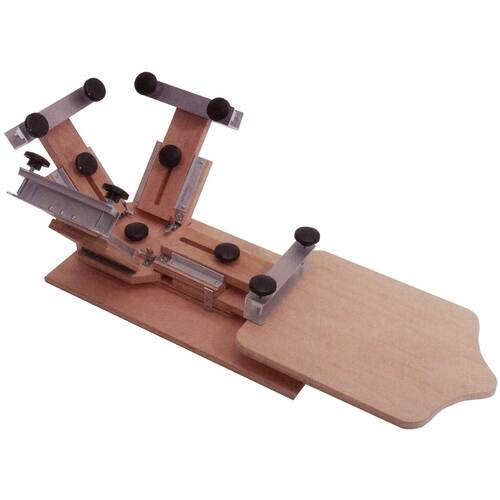

The t-shirt jig, (also called a print carousel) can print single or up to four colours at a time, accurately aligning colours by firstly positioning then holding the colours for each screen as they are printed.
This jig is designed for t-shirts with a fixed board - an XL printing board is overlaid for larger sizes if required.
- Light and portable wooden construction
- Long arm movement for greater registration with small designs
- Print ‘off contact’ with large clamp size
- Fits all frame types and sizes
- Suitable for standard, supercover and all other ink types
Instructions for registering multiple colour designs can be downloaded here . .
Direct + elevated/ off contact printing

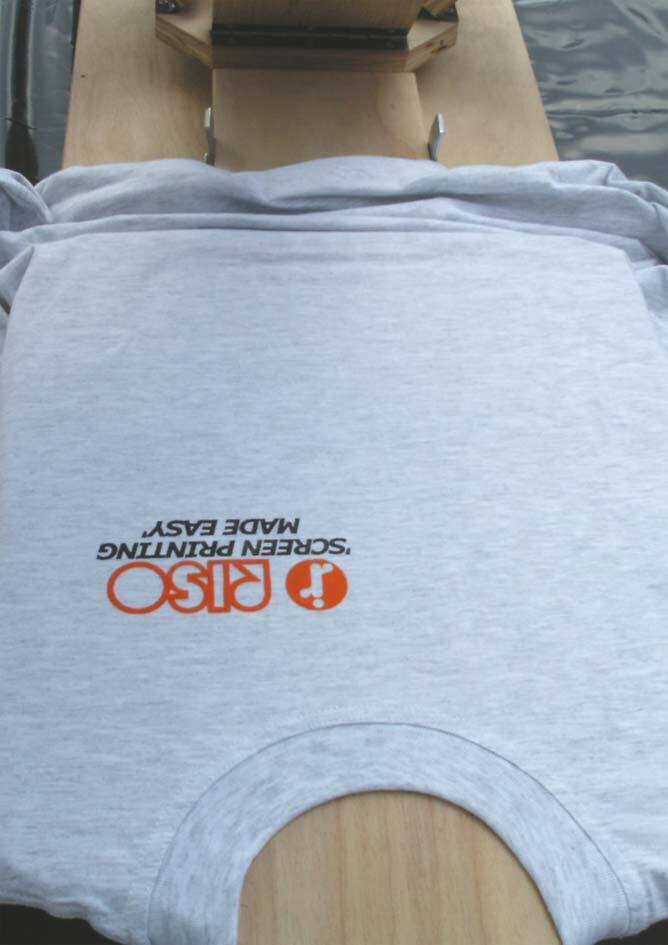

Paper/ metal/ plastic/ ceramics/ glass - many other items other than just t-shirts can be printed using this jig, with off contact abilities built in.

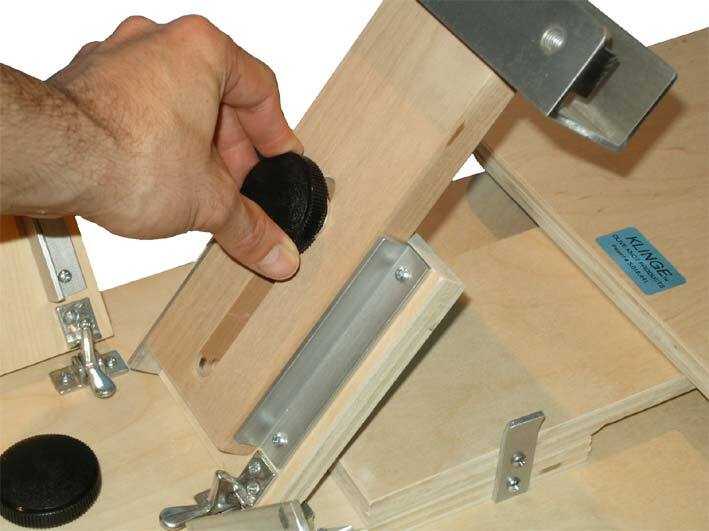

Simply place some registration guides on the board (plastic height adjusters are ideal for this) to create your registration guide. Set your screen for off contact printing by elevating in the clamp of the arm and your ready to print.
Registration is critical
There are cheaper Chinese jigs available on ebay, however the critical part of any jig is ensuring the arms come down in the exact same place every single time (or you get a miss print).
Time and time and time and time again . . . .without consistent accurate registration you won't get tight registration of the design layers.
Each of our t-shirt jigs were 100% manufactured in the USA with individual hand alignment to ensure accurate arm and guide fitting/ alignment. You get what you pay for, so be careful when looking at cheap imported options.
Construction: Base/ Board: Wood/ Wood
Clamp Height: 35mm

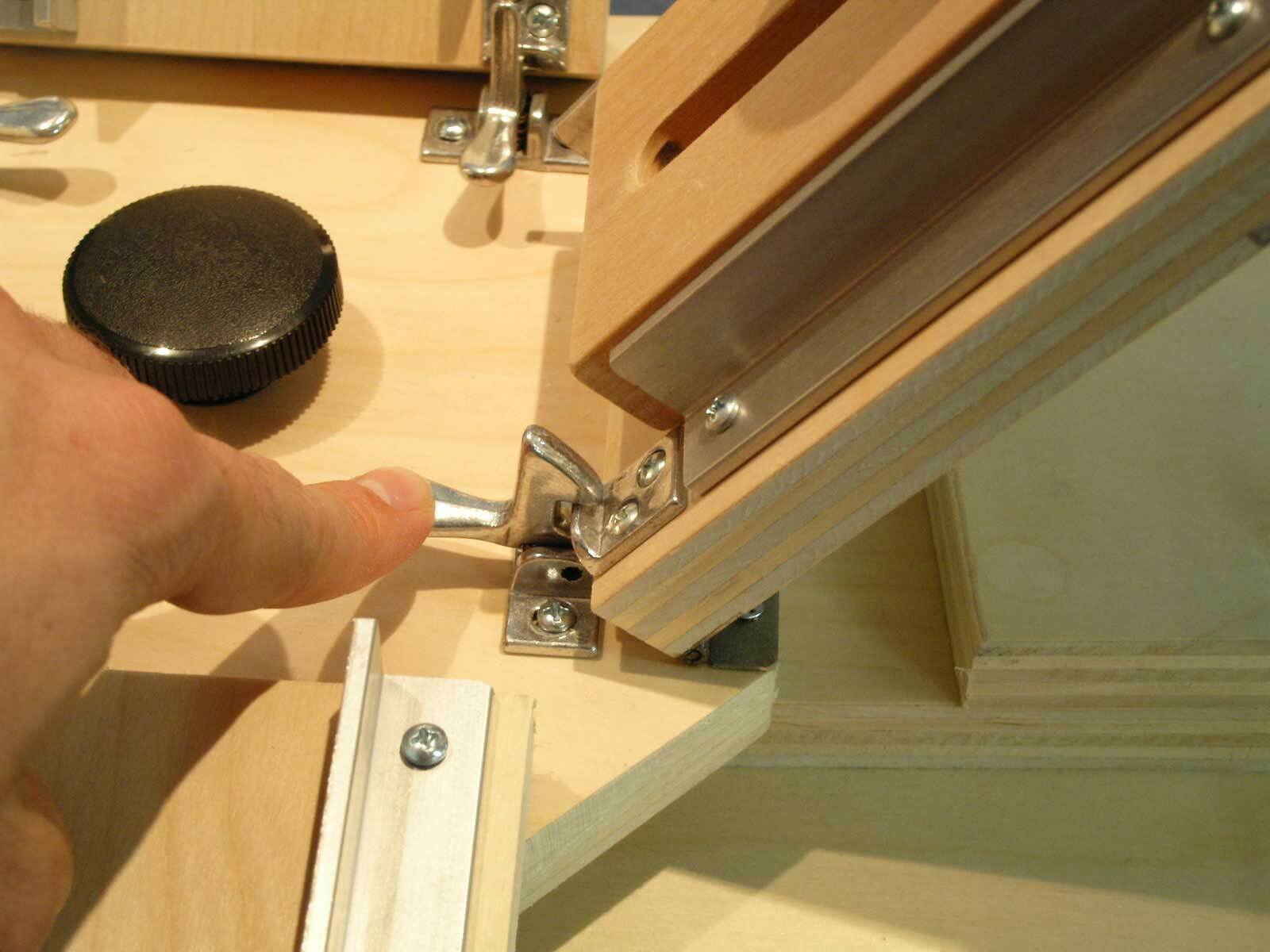

Arm Holder Type: Manual Release Clip
Board Type/ Size: Fixed T-shirt Board/ 315 x 430mm
Dimensions (assembled): 315 x 910 x 330mm
Weight (assembled): 3.95Kg

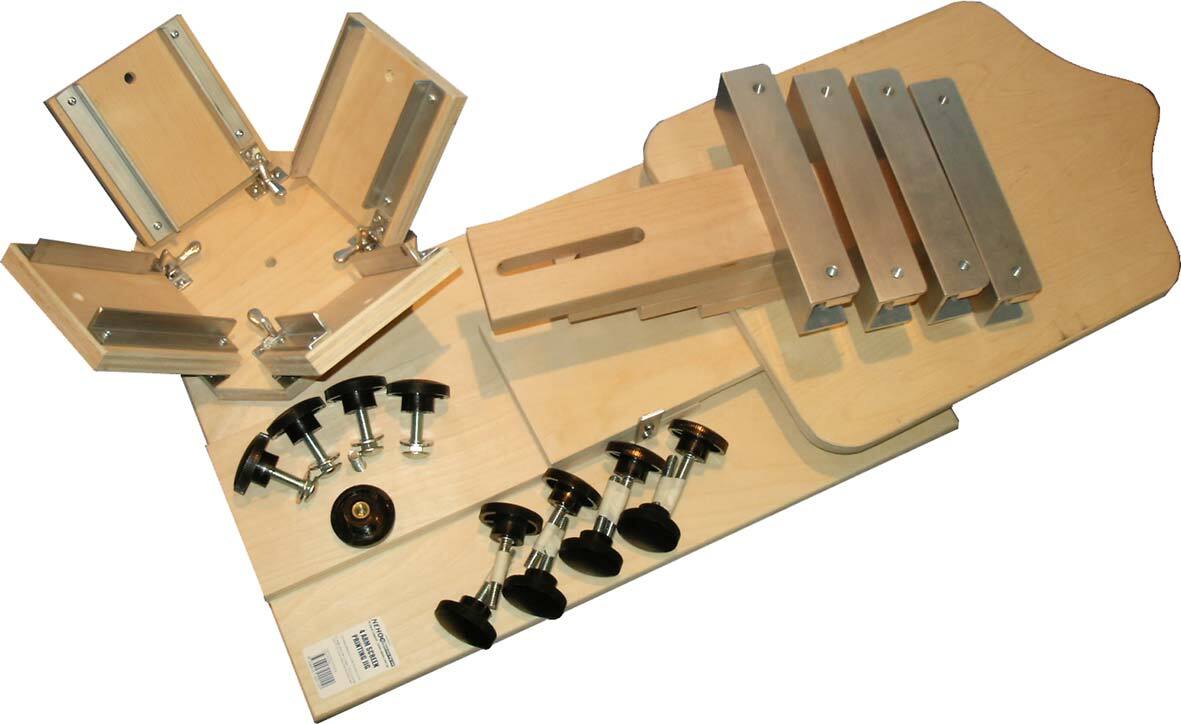

Package Contents
Supplied in pack format with some assembly required:
1 x Base with T-shirt board and hub bolt pre assembled
1 x Hub Base with attachment knob
4 x Arms
4 x Arm attachment knob, bolt, washer and nut
8 x Arm clamp screws with knobs
Jig Assembly and usage Instructions
| SKU | SPJ-4SK |
| Barcode # | 9334315020615 |
| Shipping Weight | 12.5000kg |
| Shipping Width | 0.870m |
| Shipping Height | 0.130m |
| Shipping Length | 0.470m |
| Shipping Cubic | 0.053157000m3 |
| Unit Of Measure | Set |
