GOCCOPRO QS200 Digital Screen Maker from RISO

A5/ A4 Digital Screen Imaging, 600x600dpi, photo quality

GOCCOPROSKU: DSM-QS200


GOCCOPRO QS200 creates digital screen printing screens directly from computer artwork using no films, no dark rooms and no chemical emulsions. Professional photo quality output with full grey scales 600x600dpi digital imaging. A5/ A4 screen sizes .

$44,346.50

RRP $44,500.01
SAVE $153.51
Sold Out - Backorder Available

Trade Customers: Contact us for an account review and pricing. By Special Order Only from Japan.

Flatbed digtal screen imaging onto pre-tensioned screens, sets the QS200 apart from GP100 and MiScreen models, enabling ultra high tensioned screens to be imaged.

GOCCOPRO QS200 has effectively been replaced by the GOCCOPRO QS2536 model containing a single 457mm wide thermal head (wider and higher quality), as multiple passes using the QS200's smaller head can create microscopic gaps in the design when creating artwork larger than A4, using ultra high tension frames, or reproducing photographic details A3/ A2 prints.

We recommend A5 and A4 works only for QS200, larger sizes are best suited to single head passes on using the GOCCOPRO QS2536 model.

Imaging directly from your computer to the QS200 eliminates all artwork films, carbon copies and artwork transfers to improve quality, dramatically lowers costs and creating a screen from your designs has never been faster.

Print from any program

Using a dedicated printer driver, QS200 enables you to print directly from any program with a print function. There's no separate application software to use or import designs into (as the MiScreen model uses), making QS200 faster and easier to use form any program with unlimited print functions.

A5 to A2 print size with multiple head passes

QS200 uses a small Thermal Print Head (TPH) only 105mm wide to create larger designs in multiple passes.

420mm wide by 620mm in length allows QS200 to image full A2 designs at a higher quality 600x600dpi resolution for true photo quality productions. (MiScreen model is 210x300mm @ 203dpi).

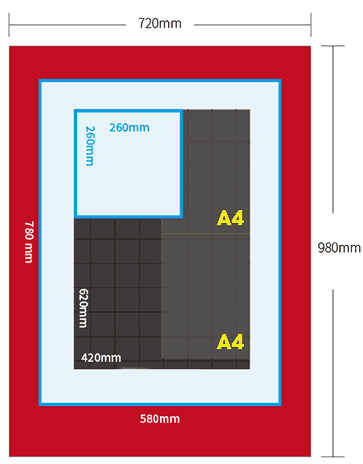

Image Size

Min 100mm x 100mm
Maximum 420mm (width)  x 620mm (length) in 4 passes.

Frame Size

Multiple frame sizes can be used, with ability to register custom frame sizes.
Min 260 x 260mm
Maximum 580mm (width)  x 780mm (length)
Thickness: 20-50mm

Software

Windows and Apple/ Mac computer systems are supported with a universal printer driver.



Shipping/ Delivery:
Please note QS200 is a heavy delivery item shipped on a palette and does not qualify for any free delivery options.
- Shipping costs for this product are additional and will be calculated and billed separately after purchase.
- We will contact you to confirm road, air or sea freight requests and best shipping options.
- Shipping weight: 100Kg
- QS200 is a special order item from RISO Japan, a 90 day delivery wait should be expected.

Price listed is for self install. Onsite install and training is available, contact us for a quote.
Delivery options may be included with install, contact us first for a quote.



Pack contents listed under specifications tab.

- Screen Making Method: High-speed Digital Screen Making
- Resolution: 600 x 600dpi (perforation density of 1200dpi)
- Main Unit Storage: 128Mb
- Supported OS: Windows 10 (32/64bit), Windows 8 (32/64bit), Windows 7 (32/64bit), Windows XP, Mac OS X10.4 to 10.9
- Interface: USB2.0
- Power Consumption: Approximately 300W (<50W in standby)
- Operating Environment: 15-30 degrees Celcius
- Dimensions: 980mm(W) x 720mm(D) x 480mm(H)
- Required Space: 1100(W) x 800mm(D) x 600mm(H)
- Machine Weight: Approx. 67Kg

Pack Contents

1 x RISO GOCCOPRO QS200 DSM Unit
1 x Software CD-ROM & USB
1 x Australian Power Cord
1 x USB 2.0 Cable
1 x Warranty Form

Shipping/ Delivery:
Please note QS200 is a heavy delivery item shipped on a palette and does not qualify for any free delivery options.
- Shipping costs for this product are additional and will be calculated and billed separately after purchase.
- We will contact you to confirm road, air or sea freight requests and best shipping options.
- Shipping weight: 100Kg

Price listed is for self install. Onsite install and training is available, contact us for a quote.
Delivery options may be included with install, contact us first for a quote.

Special Order Item

QS200 is no longer a stocked item and must be ordered new from RISO Japan. A 90 day delivery wait should be expected. Shorter time frames (air freight) can be expected, additional shipping costs will apply. Contact us in advance to discuss and receive quotes prior to ordering.

SKU DSM-QS200
Model # RISO Product Code: S-3111
Brand GOCCOPRO
Shipping Weight 83.1000kg
Shipping Width 0.770m
Shipping Height 0.610m
Shipping Length 0.580m
Shipping Cubic 0.272426000m3
Unit Of Measure ctn
