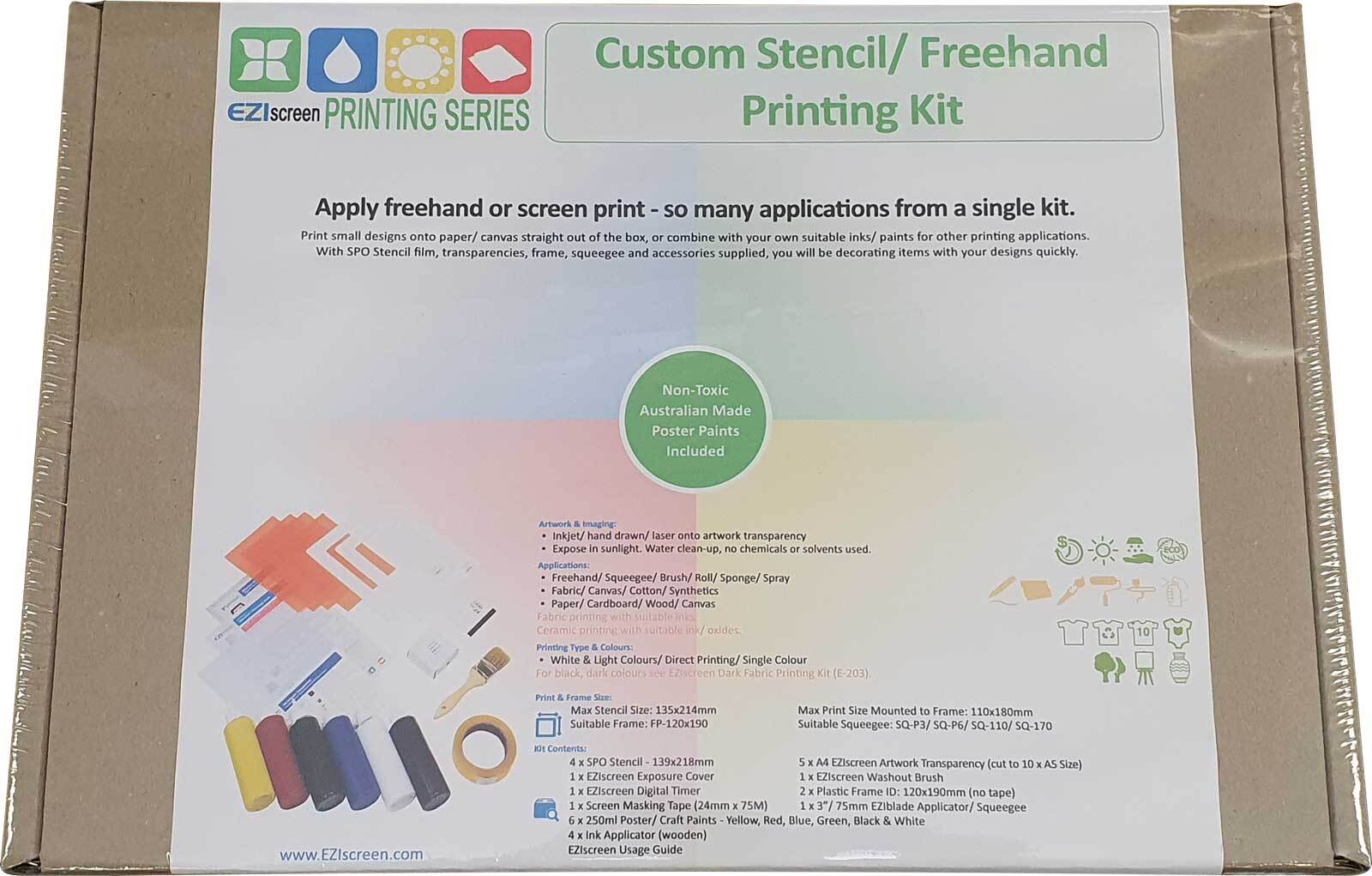

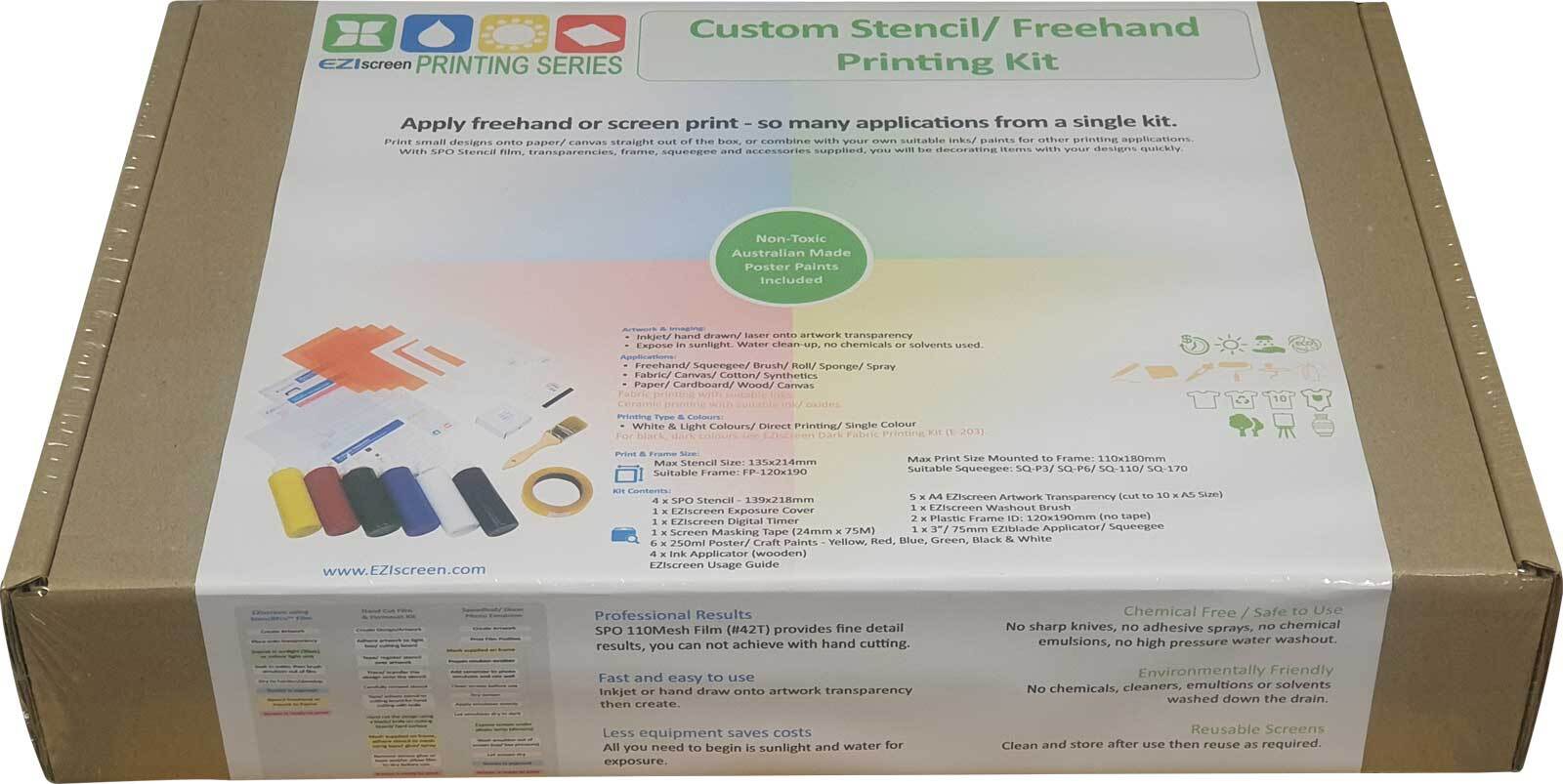

EZIscreen T-shirt/ Fabric/ Paper/ Canvas Printing Kit with Printing Lesson & t-shirt | Chemical Free Non-Toxic using SPO Films
SPO Stencil & Sheet Size + Inks + Printing Lesson
EZIscreenSKU: E-202
2 Stock Left!
Important notice:
StencilPro Film as been discontinued due to the manufacturing company immediate closure - see PDF notice in product images, or notice here - https://www.screenprintingshop.com.au/stencilpro-film-discontinuation/
- Product warranties continue to apply
- No backorders take once current stocks sold out.
- A replacement product will be available shortly and listed online in due course.
Supplied with inks and expanding upon the EZIscreen Starter Series, EZIscreen Printing Series kits contain equipment required to begin printing straight out of the box.
An ideal place to start where you have a few designs to print immediately, possibly a few more to come shortly, yet do not need all the equipment for a wide range of applications straight away, or your budget is limited.

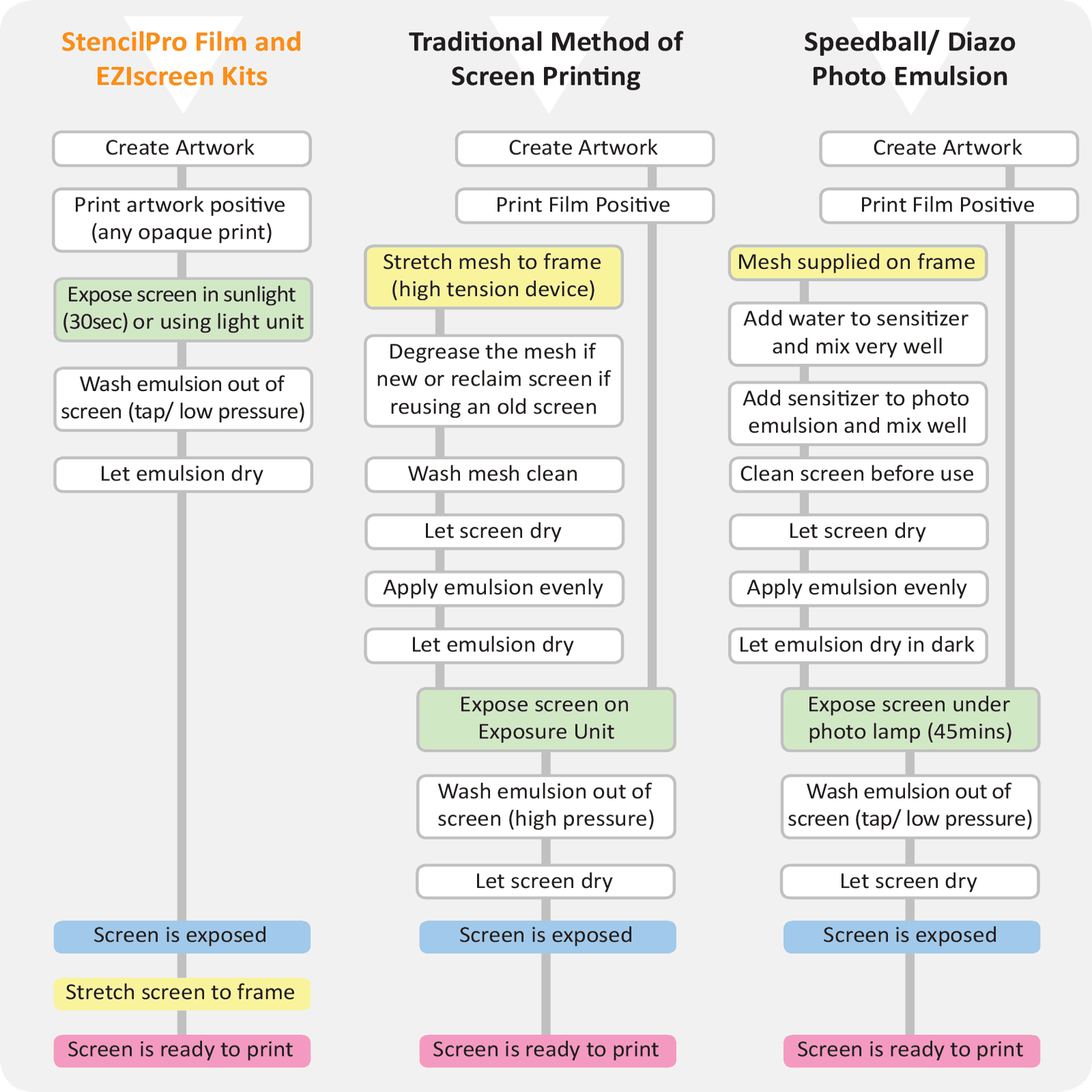

Screens are made quickly using sunlight and water for exposure, eliminating the time consuming process of hand cutting films and adhesives, or the complex/ messy/ time consuming process of emulsion coatings and exposures.
Expanded applications
With the right equipment, your printing application you can easily and quickly change applications by just changing your ink/ paints – the technique for printing fabrics, paper or ceramics is identical excluding the ink your printing.
‘Off Contact’ equipment can also be used for direct printing, simply remove the height adjusters from under the frame.
Improve quality and registration with Jig Hinges
Added to any EZIscreen printing kit, they assist to improve the quality of your print and importantly speed the printing process saving you time. Fast to set up for ‘off contact’ printing. Place height adjusters under the frame in the clamp.
- Accurate prints time and time again as the frame raises and lowers in the same position.
- Double print speed instantly. The simple act of holding your frame between prints eliminates time taken to grab, raise, move and position the frame, a simple act that saves a considerable amount of time on longer print runs.
- Jig hinges are a halfway step between freehand ‘off contact’ printing and a multi-colour jig.
- Jig hinges are low cost and flexible, they can be attached to any board or table using screws.
- Reprint areas by lowering the frame a 2nd time - ideal for missed areas or when you ran out of ink.
- Use with Supercover/ opaque fabric inks for solid coverage and reprints if required.
Printing Multiple Colours
EZIscreen Printing Kits are supplied for single colour printing straight out of the box. Quickly change colours by cleaning and then resume printing in your new colour. It is possible to change colours without cleaning the squeegee, however colour mixing will occur between the colours, or achieve a rainbow effect by loading the squeegee with multiple colours.
For accurate colour registration, a carousel/ printing jig is required - see EZIscreen Pro Multi-Colour Package.
Pack contents listed under specifications tab.
Artwork & Imaging
- Inkjet/ hand drawn/ laser onto artwork transparency
- Expose in sunlight or indoor under U.V. fluro lamp
- Water clean-up, no chemicals or solvents used
Applications
- Freehand/ Squeegee/ Brush/ Paint/ Roll/ Sponge/ Spray
- Paper/ Wood/ Ceramic Transfer Printing
- Fabric printing with suitable inks
- Ceramic printing with suitable ink/ oxides
Printing Type & Colours
- White & Light Colours/ Direct Printing/ Single Colour
- For black, dark colours see E-203 Supercover Printing Kit.
- A multi-colour jig is recommended for printing multiple colour artwork.
Print & Frame Size
Max Print Size: 214x275mm
Max Print Size Mounted to Frame: 170x230mm
Suitable Frame: FP-120x190/ FP-180x250/ FMx180x250
Suitable Squeegee: SQ-P3/ SQ-P6/ SQ-110/ SQ-170/SQ-240

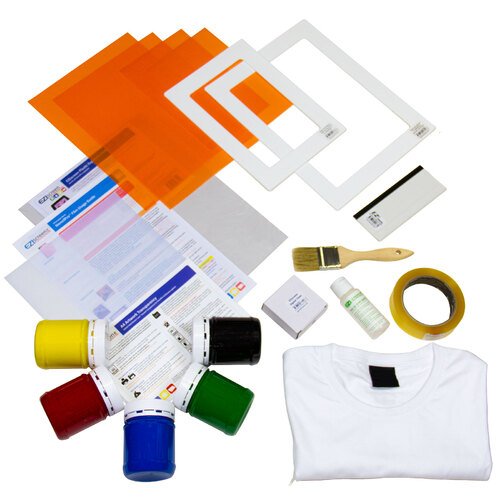

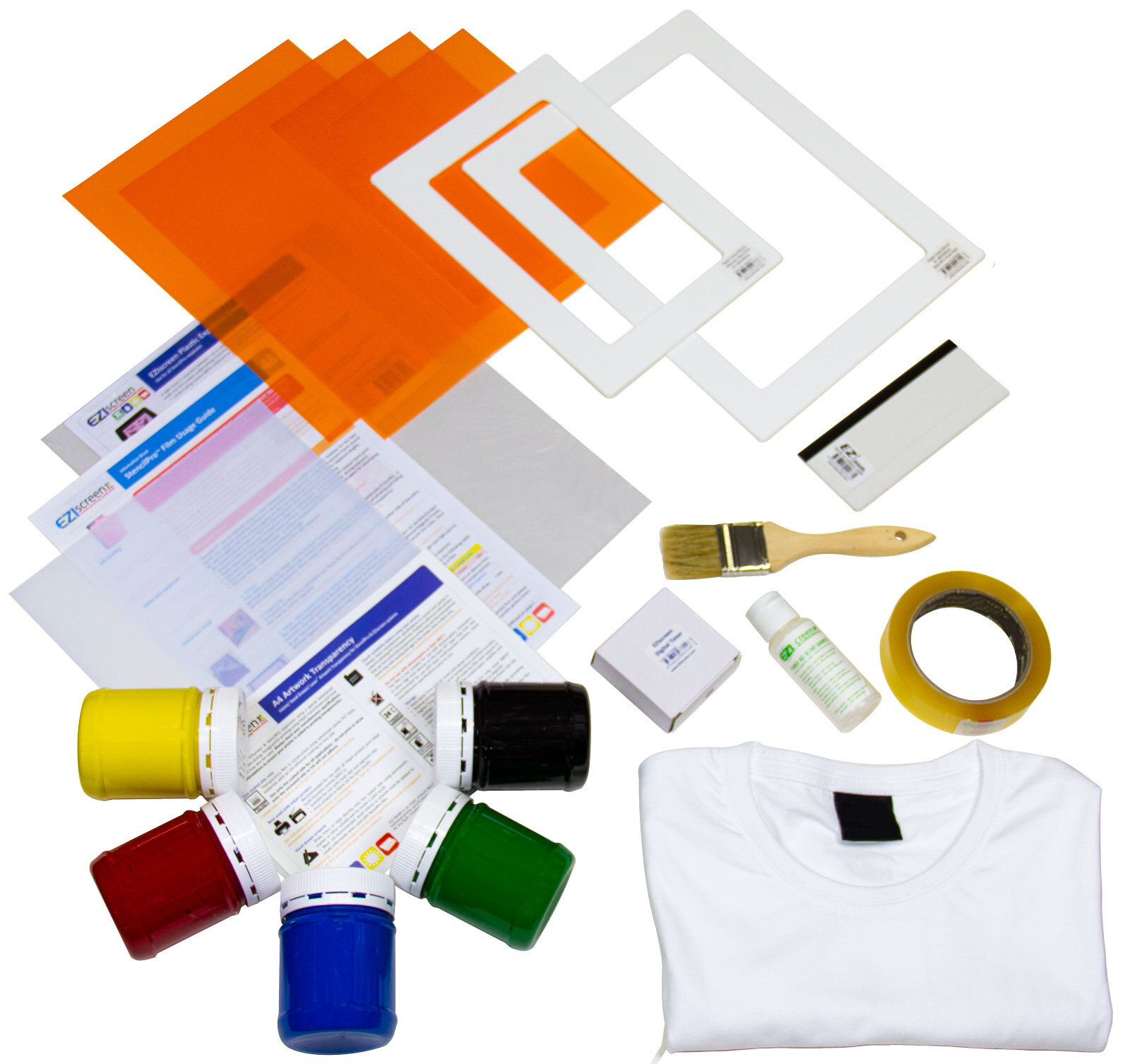

Kit Contents

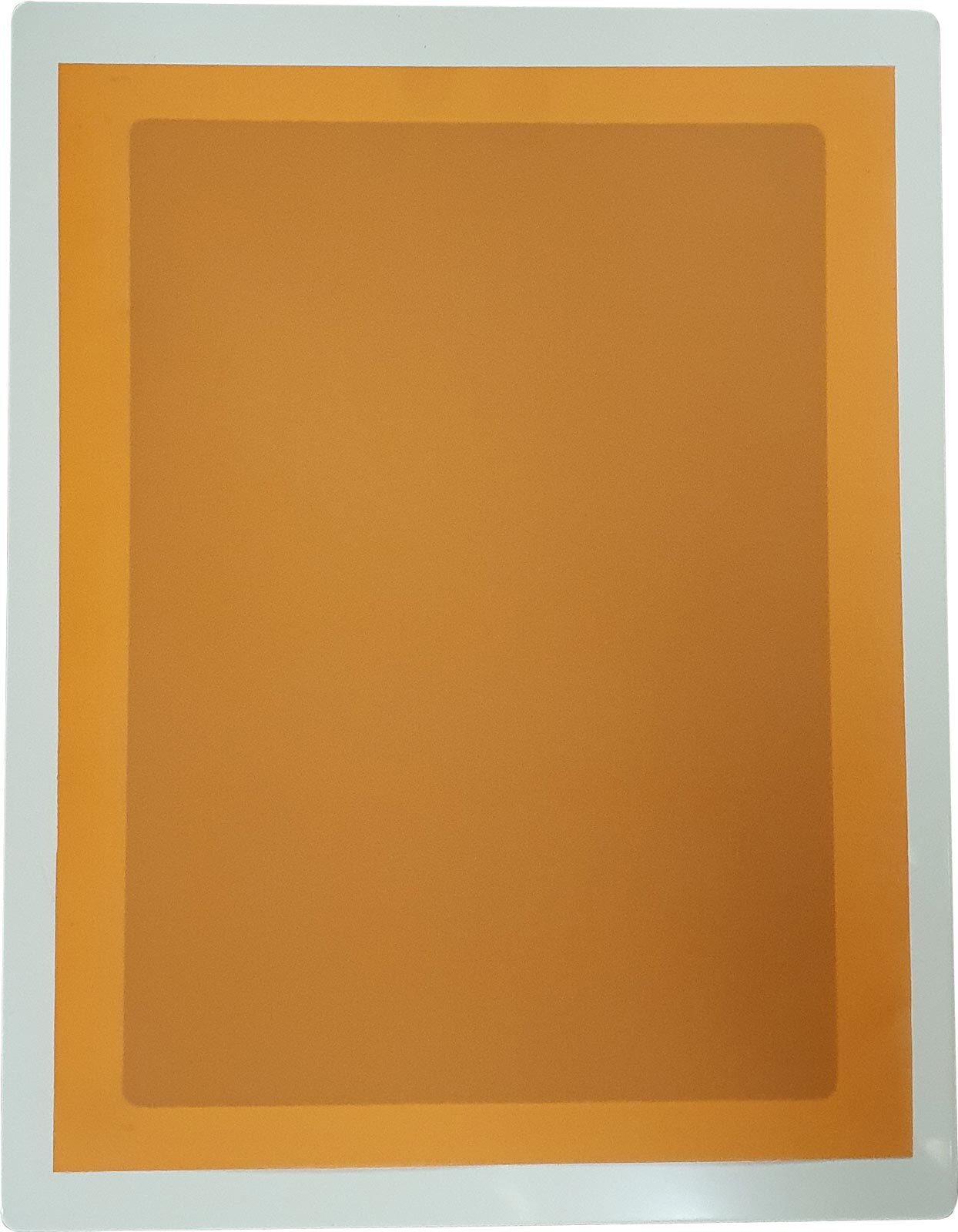

2 x SPO Stencil - 139x218mm
2 x SPO Sheet - 218x279mm
1 x EZIscreen Exposure Cover
5 x A4 EZIscreen Artwork Transparency (cut to 10 x stencil size)
1 x EZIscreen Washout Brush
1 x EZIscreen Digital Timer
1 x Plastic Frame ID: 120x190mm (no tape)
1 x Plastic Frame ID: 180x250mm (no tape)
1 x 150mm EZIblade Applicator/ Squeegee
1 x Screen Masking Tape (24mm x 75M)
5 x Standard Fabric Ink 250ml - Yellow, Red, Blue, Green and Black
1 x table Adhesive (sample size)
4 x Ink Applicator (wooden)
Printing Lesson #1 + practice t-shirt
EZIscreen Usage Guide
| SKU | E-202 |
| Barcode # | 9334315037446 |
| Brand | EZIscreen |
| Shipping Weight | 2.8500kg |
| Shipping Width | 0.360m |
| Shipping Height | 0.070m |
| Shipping Length | 0.260m |
| Shipping Cubic | 0.006552000m3 |
| Unit Of Measure | Kit |
| Type | EZIscreen Printing Kit |
SPO film is a consumable item with a shelf life. Refer to website warranty section for SPO Film specific conditions and suitability of usage.
